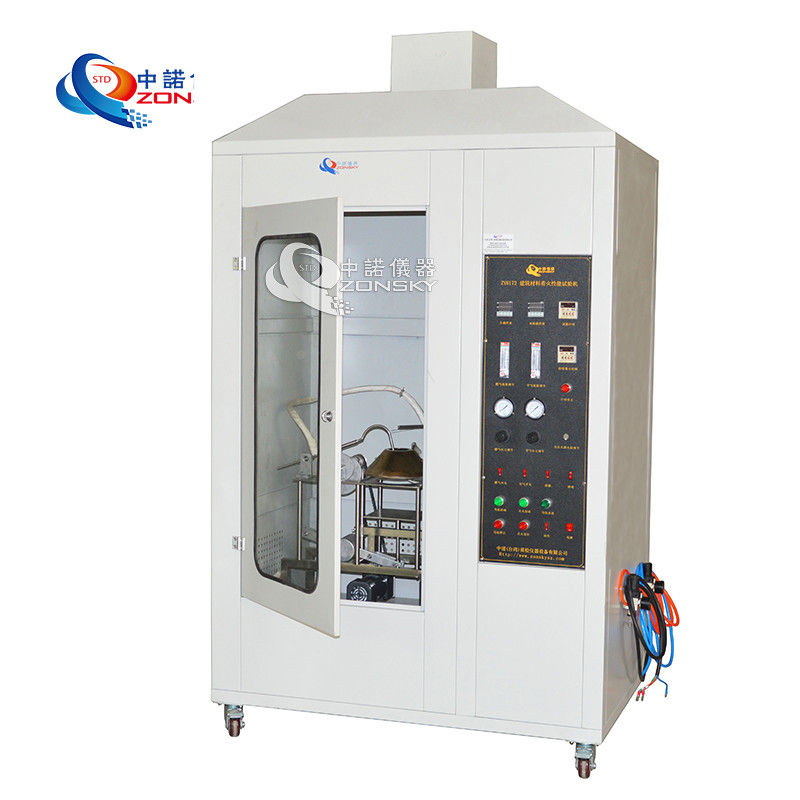

ISO5657 Building Material Flammability Performance Tester / Burning Testing Equipment

ISO5657 Building Material Flammability Performance Tester / Burning Testing Equipment

1. Overview

Building Material Flammability Performance Tester is suitable for detecting the ignition performance of fire surface when the material or composite material with thickness less than 70mm is placed horizontally under the specified radiation conditions. Its design and manufacture meet the requirements of GB/T14523-93 "Test Method for Fire Performance of Building Materials" and ISO5657-1986 "Combustion Test - Fire Response - Fire Resistance of Building Products".

2. Technical parameters

(1) Composition: Radiation cone, ignition device, nozzle, platen mechanism and support frame, temperature recorder, gas system, timer, oven, radiation measuring instrument.

(2) Support frame: composed of chassis, guards and pillars

(3) The platen mechanism: there are pressure plate, guide rod, adjustment rod and balance rod and other components.

(4) Radiation cone: heating power 3KW, radiation intensity: 1~5W/cm2

(5) Fire-fighting mechanism: consists of a pilot arm, a secondary ignition source and a cam.

3. Principle of testing

The sample is mounted horizontally, and a constant irradiance is selected to act on the fire surface of the sample in the range of 10 kw/m2 to 70 kw/m2. At a predetermined time interval, the volatile gas released from the sample was ignited with a pilot flame 10 mm above the center of each sample, and the duration time of ignition of the sample surface was recorded.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.

Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
