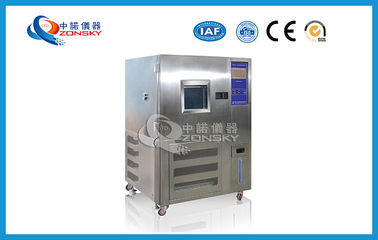

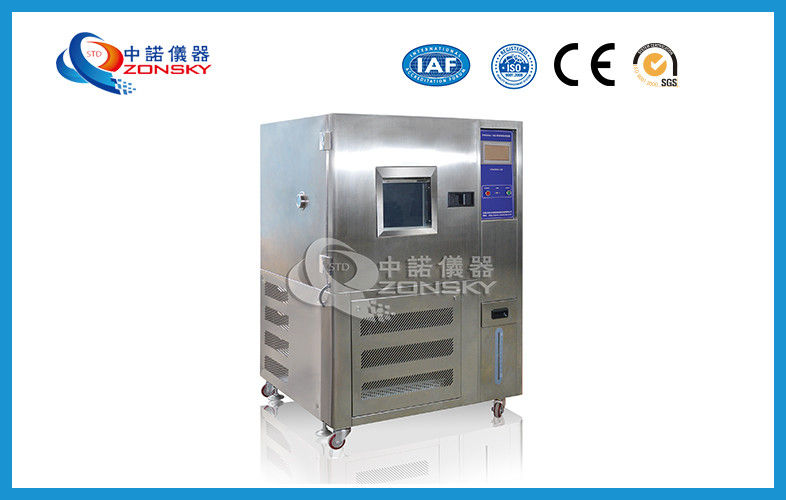

Programmable Temperature Humidity Test Chamber , Constant Temperature Humidity Chamber

China Programmable Temperature Humidity Test Chamber , Constant Temperature Humidity Chamber supplier

Large Image :  Programmable Temperature Humidity Test Chamber , Constant Temperature Humidity Chamber

Product Details:

Place of Origin: DONGGUAN, CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6046-ZN

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set / Month
Detailed Product Description
Material: Stainless Steel Plate (SUS304) Warranty Period: 12 Months
Compressor: French Tecumseh Touch Panel: 7-inch LCD
Controller: Multi Group PID Control Refrigerant: R404A
High Light:

temperature humidity test equipment

,

temperature and humidity test chamber

Programmable Constant Temperature And Humidity Test Chamber



Temperature and humidity control range: air cooled type at room temperature of 20℃, no load.



1. Refrigeration system

2.1 Compressor: fully packed compressor imported from France

2.2 Refrigerant: environmental friendly refrigerant R404A

2.3 Condenser: fin type heat sink motor

2.4 Evaporator: fin type multi-stage automatic load capacity adjustment

2.5 Other accessories: desiccant, refrigerant flow window, repair valve

2.6 Expansion system: capacity controlled refrigeration system



2. Main technical parameters

 Temperature range  -40℃~150℃
 Temperature fluctuation  ±0.5℃
 Temperature deviation  ≤±2℃
 Heating time  about 4 degrees /min (no load non-linearity)
 Cooling time  about 1 degrees /min (no load non-linearity)
 Humidity range  20% ~ 98% R.H
 Humidity fluctuation  3% R.H
 Humidity deviation  ≤3%



3. Control system

Original imported from Korea, full Chinese 7-inch LCD touch panel, interactive screen input data, temperature and humidity programmed at the same time, curve display, set value / display value curve. Supporting the U disk to directly export the temperature and humidity record data, displaying a variety of alarms respectively.It can display the fault through the screen, eliminate the fault, eliminate the misoperation when the fault occurs. Multi group PID control function, precision monitoring function, and displayed in data form on the screen.
