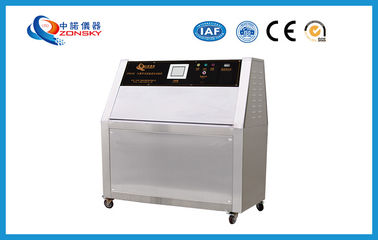

AC 220V 50Hz UV Accelerated Weathering Tester PID Self - Tuning Temperature Control Mode

China AC 220V 50Hz UV Accelerated Weathering Tester PID Self - Tuning Temperature Control Mode supplier

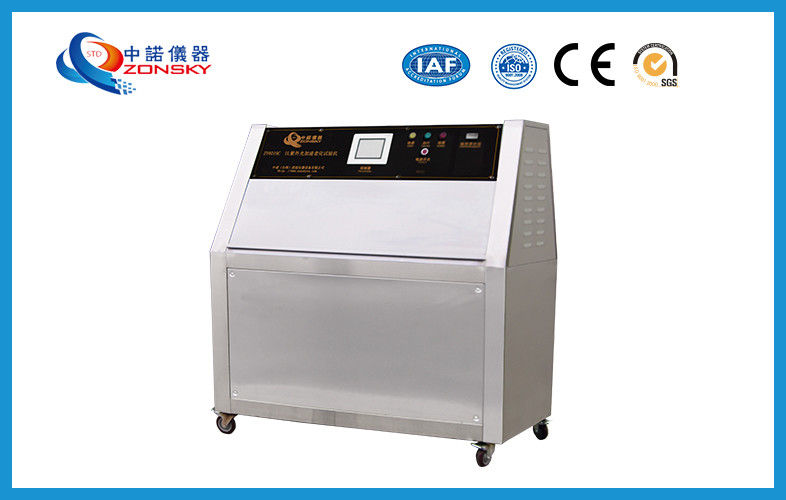

Large Image :  AC 220V 50Hz UV Accelerated Weathering Tester PID Self - Tuning Temperature Control Mode

Product Details:

Place of Origin: DONGGUAN, CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6170UL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Detailed Product Description
Standards: ASTM G 153 , ASTM D 4329 Weight: About 150 KGS
Condensation Temperature: 40 ~ 60 ℃ Temperature Resolution: 0.1 ℃
Wave Length: 315 ~ 400 NM Humidity Range: 45%~70%R.H (light State)
High Light:

uv aging test chamber

,

uv lamp testing equipment

AC 220V 50Hz UV Aging Test Chamber, UV Accelerated Weathering Tester





1. Application



1.1 The UVA-340 fluorescent ultraviolet lamp is used as the light source to simulate the damage caused by sunlight, rain and dew. UV weatherproof chamber uses fluorescent ultraviolet lamp to simulate the effect of sunlight, and uses condensation moisture to simulate dew. The material under test is placed in a cyclic program of alternating light and moisture at a certain temperature. The accelerated weathering test is carried out to obtain the results of the weathering resistance of the material. UV chambers can be used for several days or weeks to reproduce the hazards of outdoor months or years. Hazard types include: fading, discoloration, loss of light, pink, cracking, turbidity, bubbles, brittleness, strength, decay and oxidation. This machine contains sprinkling device.



1.2 The ultraviolet accelerated aging test chamber can simulate the ultraviolet, rain, high temperature, high humidity, condensation, darkness and other environmental conditions in the natural climate, by reproducing these conditions, merging into a cycle, and letting it automatically complete the cycle number. This is the working principle of UV aging test chamber. In this process, the equipment can automatically monitor the blackboard temperature and the flume temperature. By configuring the irradiance measuring and controlling device (optional), the irradiance can be measured and controlled, so that the irradiance can be stabilized at 0.76W/m2/340nm or the specified set value, and the life span of the lamp can be greatly prolonged.





2. Standards



Conforms with ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799, ASTM D 4587, SAE J2020, ISO 4892, all current UV aging test standards.





3. Techincal Parameters

 External dimension

 1300mm x 500mm x 1460mm
 Internal dimension  1140mm x 400mm x 380mm
 Standard sample size   75 x 150mm     48pcs
 Light temperature range  50~70 ℃
 Condensation temperature range  40~60 ℃
 Temperature tolerance  ±3 ℃
 Temperature resolution  0.1 ℃
 Temperature control mode  PID self-tuning temperature control mode
 Humidity range  45%~70% R.H (light state)
 Above 98% (condensation state)
 Sink requirements   Water depth ≤ 25mm
 Automatic controller for water supply
 Distance between sample and tube center   50 mm
 Wave length range  315~400 nm
 Radiation intensity  1.2W / m2 / 340 nm
 Weight  150 kgs
 Power requirements  AC 220V 50Hz, 8A, 10A slow melting fuse
 Single-phase three wires
