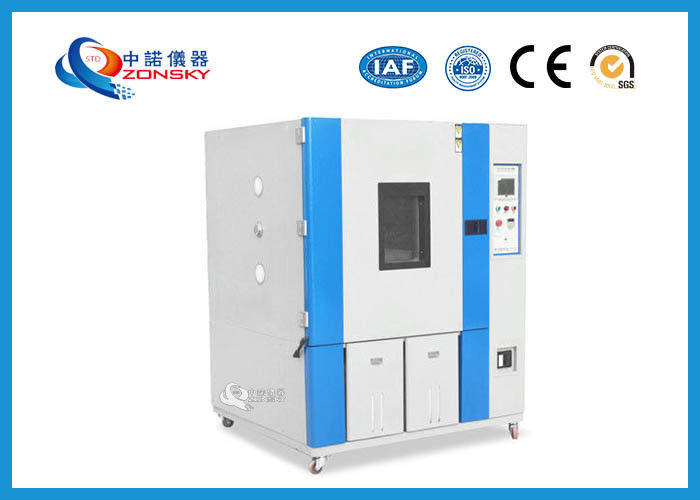

High And Low Temperature And Humidity Test Chamber 7 Inch LCD Touch Panel

China High And Low Temperature And Humidity Test Chamber 7 Inch LCD Touch Panel supplier

Large Image :  High And Low Temperature And Humidity Test Chamber 7 Inch LCD Touch Panel

Product Details:

Place of Origin: DONGGUAN, CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6046-ZN2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set / Month
Detailed Product Description
Material: Stainless Steel Plate (SUS304) Warranty Period: 12 Months
Compressor: French Tecumseh Touch Panel: 7-inch LCD
Controller: Multi Group PID Control Refrigerant: R404A
High Light:

constant temperature humidity chamber

,

temperature and humidity test chamber

High and Low Temperature Humidity Environment Test Chamber





1. Criteria



Performance indicators meet the requirements of GB5170, 2, 3, 5, 6-95 “Basic parameters verification methods for environmental test equipment for electrical and electronic products low temperature, high temperature, constant humidity and alternating humidity and heat test equipment”.



Basic environmental test code for electrical and electronic products test A: low temperature test method GB 2423.1-89 (IEC68-2-1)



Basic environmental test code for electrical and electronic products test B: high temperature test method GB 2423.2-89 (IEC68-2-2)



Basic Environmental Test Rules for Electrical and Electronic Products Test Ca: Constant Humidity and Heat Test Method GB/T 2423.3-93 (IEC 68-2-3)



Basic Environmental Test Rules for Electrical and Electronic Products Test Da: Alternating Humidity-Heat Test Method GB/T423.4-93 (IEC68-2-30)



Control Methods and Characteristics



Balanced temperature control system (BTHC) controls SSR by P.I.D. so that the heating and humidification of the system is equal to the loss of humidity and heat, so it can be used stably for a long time.



2. Refrigeration system

2.1 Compressor: fully packed compressor imported from France

2.2 Refrigerant: environmental friendly refrigerant R404A

2.3 Condenser: fin type heat sink motor

2.4 Evaporator: fin type multi-stage automatic load capacity adjustment

2.5 Other accessories: desiccant, refrigerant flow window, repair valve

2.6 Expansion system: capacity controlled refrigeration system



3. Main technical parameters

 Temperature range  -40℃~150℃
 Temperature fluctuation  ±0.5℃
 Temperature deviation  ≤±2℃
 Heating time  about 4 degrees /min (no load non-linearity)
 Cooling time  about 1 degrees /min (no load non-linearity)
 Humidity range  20% ~ 98% R.H
 Humidity fluctuation  3% R.H
 Humidity deviation  ≤3%



3. Control system

Original imported from Korea, full Chinese 7-inch LCD touch panel, interactive screen input data, temperature and humidity programmed at the same time, curve display, set value / display value curve. Supporting the U disk to directly export the temperature and humidity record data, displaying a variety of alarms respectively.It can display the fault through the screen, eliminate the fault, eliminate the misoperation when the fault occurs. Multi group PID control function, precision monitoring function, and displayed in data form on the screen.
