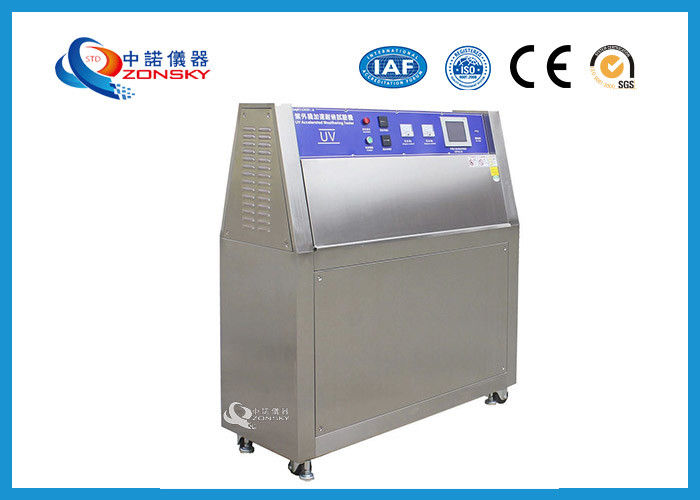

SUS 304 UV Testing Machine High Durability 75x150 MM Irradiance Uniformity

China SUS 304 UV Testing Machine High Durability 75x150 MM Irradiance Uniformity supplier

Large Image :  SUS 304 UV Testing Machine High Durability 75x150 MM Irradiance Uniformity

Product Details:

Place of Origin: DONGGUAN, CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6170B3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Detailed Product Description
Material: SUS 304# Stainless Steel Plate Outline Size: 1300 X 500 X 1460 MM
Irradiance Uniformity: 75 X 150 MM Temperature Resolution: 0.1 ℃
Wavelength Range: 315 ~ 400 NM Weight: About 150 KGS
High Light:

uv aging test chamber

,

uv accelerated weathering tester

Brand New UV Accelerated Weathering Tester / UV Testing Machine


1. Application

1.1 The UVA-340 fluorescent ultraviolet lamp is used as the light source to simulate the damage caused by sunlight, rain and dew. UV weatherproof chamber uses fluorescent ultraviolet lamp to simulate the effect of sunlight, and uses condensation moisture to simulate dew. The material under test is placed in a cyclic program of alternating light and moisture at a certain temperature. The accelerated weathering test is carried out to obtain the results of the weathering resistance of the material. UV chambers can be used for several days or weeks to reproduce the hazards of outdoor months or years. Hazard types include: fading, discoloration, loss of light, pink, cracking, turbidity, bubbles, brittleness, strength, decay and oxidation. This machine contains sprinkling device.

1.2 The ultraviolet accelerated aging test chamber can simulate the ultraviolet, rain, high temperature, high humidity, condensation, darkness and other environmental conditions in the natural climate, by reproducing these conditions, merging into a cycle, and letting it automatically complete the cycle number. This is the working principle of UV aging test chamber. In this process, the equipment can automatically monitor the blackboard temperature and the flume temperature. By configuring the irradiance measuring and controlling device (optional), the irradiance can be measured and controlled, so that the irradiance can be stabilized at 0.76W/m2/340nm or the specified set value, and the life span of the lamp can be greatly prolonged.


2. Standards

Conforms with ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799, ASTM D 4587, SAE J2020, ISO 4892, all current UV aging test standards.


4. Components Chart


 Controller

 TEMI P990 7 inch

 Korea

 Tube

 UVA 340

 America

 Water Pump

 Stainless Steel Mute Corrosion Resistant Pump

 Customized

 Temperature Sensor

 VAISALA

 Holland

 Heater

 Taiyi Away:

 Taiwan

 Circulation Motor

 Dongguan  Taiwan

 Power Master Switch

 Tiande  Taiwan

 AC relay

 Power Master Switch

 Taiwan

 S.S.R

 Fuji

  Janpan

 Contact Switch

 Express

 Hongkong
