ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing

China ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing supplier
ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing supplier ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing supplier ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing supplier ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing supplier

Large Image :  ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6017E-PC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 5000USD - 12000USD
Packaging Details: Wooden Case
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Set / Month
Contact Now
Detailed Product Description
Surface Dealing: Stainless Steel Standards: ASTM E119
Power Supply: AC380V, 50HZ Total Power: 2 KW
Gas Flow Rate: 6 - 60 L/min Air Flow: 2.5 - 25 L/min
Control Cabinet: L800 * W550 * H1700 Mm Dimension: L1600 * W1003 * H3930 Mm

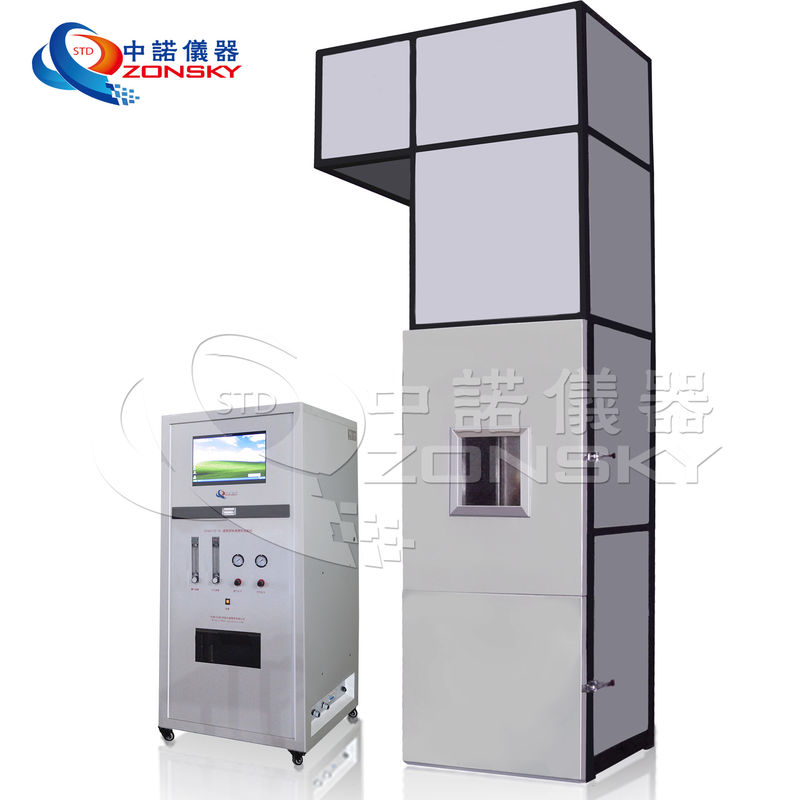

ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing



1. Overview



Building Material Flame Retardant Testing Equipment is suitable for judging whether building materials are flammable. Any material that passes the test of the burning furnace and cannot pass the flammability test of building materials can be classified as a flame retardant material. Its design, production, inspection and other aspects are in line with the requirements of GB/T8625-2005 standard. This equipment is controlled by computer, and its surface is sprayed with plastic, which is more clean and beautiful.



2. Technical parameters



(1) Working power: AC380V, 50HZ, the total power is 2KW;



(2) Combustion gas: methane with a purity greater than 95%, or gas of the same purity (user-owned)



(3) Gas flow rate: 6-60L/min;



(4) Air flow: 2.5-25L/min (air compressor users self-prepared);



(5) The measurement of the pressure inside the furnace: the use of precision 0.5 differential pressure transmitter;



(6) Burner: stainless steel production, horizontally placed in the center of the combustion chamber, 1000mm from the bottom of the furnace;



(7) Flue: The flue of the burning shaft furnace is a square passage with a cross-sectional area of 500mm x 500mm, and is located at the top of the furnace, the lower part is connected with the combustion chamber, and the upper part is connected with the external chimney. The device is equipped with a powerful exhaust fan. When the test is completed, the exhaust fan system is activated to exhaust the exhaust gas to the outside;



(8) Test piece bracket: L380mm * W380mm * H1000mm, made of high quality stainless steel;



(9) Control cabinet size: L800mm * W550mm * H1700mm;



(10) Burning shaft furnace size: L1600mm * W1003mm * H3930mm.



ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance TestingASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance TestingASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance TestingASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing

ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing

ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing

ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing

ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing

ASTM E119 Building Material Flame Retardant Testing Equipment / Fire Resistance Testing



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
