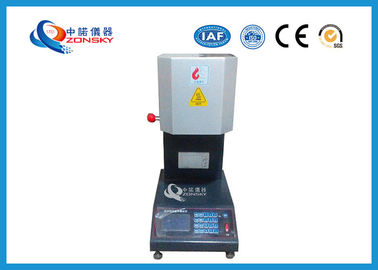

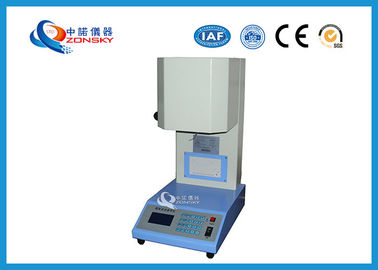

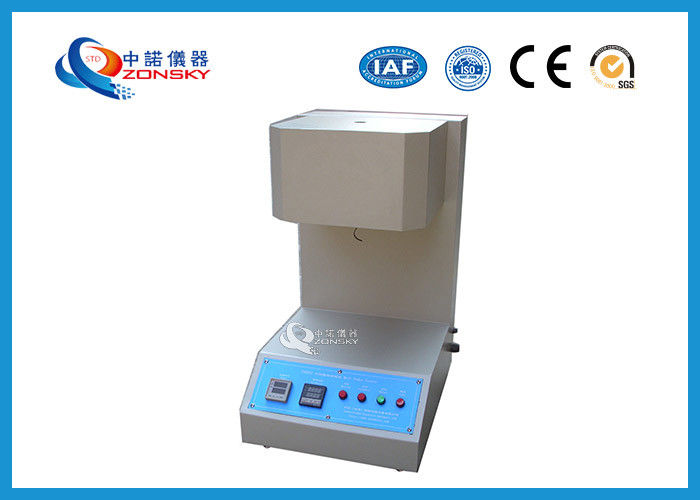

ZY6052 Melt Flow Index Tester / Standard Melt Flow Tester For Research Institutes

Melt Flow Index Tester / Standard Melt Flow Test Equipment

1. Application

ZY6052 melt flow rate meter is an instrument for measuring the flow properties of thermoplastic polymers at high temperature according to the test method of GB3682-2000. It is used for polyethylene, polypropylene, polyoxymethylene, ABS resin, polycarbonate, nylon fluoroplastic, etc. Determination of the melt flow rate of a polymer at elevated temperatures. Suitable for production and research in factory companies and research institutes.

2. Main Technical Parameters

(1) Extrusion part:

Outlet diameter: Ф2.095±0.005 mm

Outlet length: 8.000±0.025 mm

Loading cylinder diameter: Ф9.550±0.025 mm

Loading barrel length: 152±0.1 mm

Piston head diameter: 9.475±0.015 mm

Piston head length: 6.350±0.100 mm

(2) Standard test load (seven levels)

Level 1: 0.325kg=(piston rod + weight tray + insulation sleeve + 1 size body) = 3.187N

Level 2: 1.200 kg=(0.325+2#0.875 poise)=11.77 N

Level 3: 2.160 kg = (0.325 + 3#1.835 poise) = 21.18 N

Level 4: 3.800 kg=(0.325+4#3.475poise)=37.26 N

Level 5: 5.000 kg=(0.325+5#4.675poise)=49.03 N

Level 6: 10.000 kg=(0.325+5#4.675poise+6#5.000poise)=98.07 N

Level 7: 21.600kg=(325+1290+1835+3475+4675+2×5000poise) kg=211.82N

(3) Temperature range: room temperature - 400℃.

(4) Constant temperature accuracy: ±0.5℃

(5) The power supply voltage: 220V±10%, 50Hz

(6) Working environment conditions: ambient temperature is 10℃﹣40℃; ambient relative humidity is 30%﹣80%; no corrosive medium around, no strong air convection; no vibration around, no strong magnetic field interference.

(7) Instrument dimensions: 250 x 350 x 510 mm (length x width x height)
