Product Details:
Payment & Shipping Terms:
|
Material: | Stainless Steel | Spindle Speed: | ≤ 8 R/min |
---|---|---|---|
Dimension: | 1280 X 480 X 106 MM | Number Of Rotations: | 0 To 999999 Times |
Sample Diameter: | Aluminum Wire ¢ 1.25 ~ ¢ 6.00mm | Power: | 220V / 50HZ |
High Light: | flammability test chamber,flammability test apparatus |

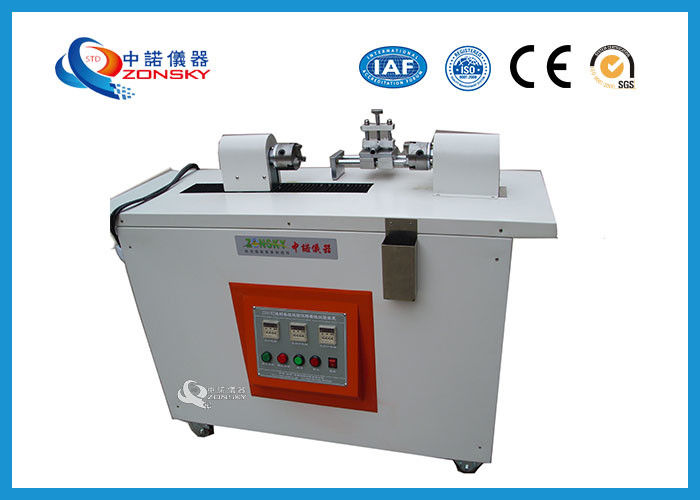

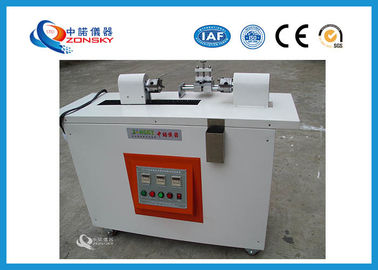

Wire Winding Adhesion Test Device
1. Application
This machine meets the test occasions specified in the GB4909.7-85 "Bare Wire Test Method, Winding Test" standard. Users should carefully read the GB4909.7-85 standard and the operating instructions of the machine before using the machine, and be familiar with the performance of the machine to accurately use the machine to complete the winding test.
2. Main Parameters
1) Dimensions (unit: mm): D*W*H, 1280 x 480 x 106;
2) The number of rotations: 0 to 999999 times, which can be set arbitrarily;
3) Power supply: 220V/50HZ. To ensure safety, be sure to ground.
3. Winding Test
Sample diameter: aluminum wire ¢ 1.25 ~ ¢ 6.00mm steel wire ¢ 1.25 ~ ¢ 4.5mm
Test rod diameter: ¢4.0 ¢6.0 ¢8.0 ¢10.0 ¢14.0 ¢16.0 each 1
Spindle speed: ≤8r/min
Right axis head displacement distance: ≥40
Motor: power 0.75KW, speed 1500r/min
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: No, we don't provide the samples for testing.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.
Q: What is your terms of payment ?
A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
