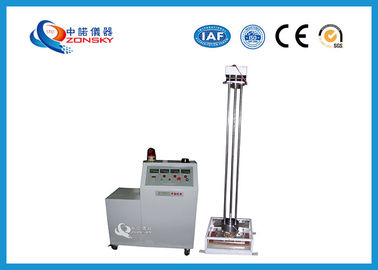

MT818 Mining Cable Mechanical Impact Testing Equipment / Mechanical Tests For Flexible Cables

China MT818 Mining Cable Mechanical Impact Testing Equipment / Mechanical Tests For Flexible Cables supplier

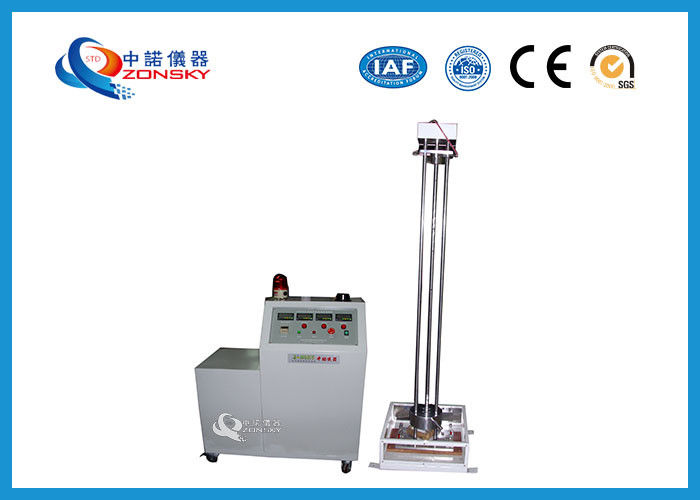

Large Image :  MT818 Mining Cable Mechanical Impact Testing Equipment / Mechanical Tests For Flexible Cables

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6096

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set / Month
Contact Now
Detailed Product Description
Material: Stainless Steel Weight: 20 KG
Control Box Size: L600 X W500 X H1280 MM Test Machine Size: L630 X W500 X H1910 MM
Test Voltage: 0 ~ 6 KV Power: 220V / 50HZ

Mining Cable Mechanical Impact Testing Equipment / Mechanical Tests For Flexible Cables





1. Overview



This test machine is suitable for mechanical impact resistance of mine rubber flexible cables below 6KV. Meet the standard requirements of GB12972, MT818.



2. Matters Needing Attention



The hammer of this test machine weighs 20kg and has a high impact height. It must be safe when doing the test to avoid injury to the body parts such as hands and feet. The protective latch (the latch under the weight) and the fixed latch (the latch under the electromagnetic plate) must be inserted before the test. When the test is to be carried out, the fixing pin can be pulled out to prevent the electromagnet from being powered off or damaged, causing the hammer to fall and causing harm to the human body.



3. Technical Parameters



(1) Instrument Dimensions: Test Machine Size: L630mm x W500mm x H1910mm

Control box size: L600mm x W500mm x H1280mm

(2) Weight quality: 20 kg

(3) Test voltage: 0 ~ 6 KV continuously adjustable

(4) Test stroke: 0.75m, 1.1m and 1.5m

(5) Working power supply voltage: 220V/50HZ



4. Test Preparation



(1) The test core cross section and the corresponding number of cable impacts are specified as;

(16—35)mm2: 2 times;

(50—l20)mm2: 3 times.

(2) Sample preparation

One sample was taken from the finished cable and was about 2 m long.



MT818 Mining Cable Mechanical Impact Testing Equipment / Mechanical Tests For Flexible Cables

MT818 Mining Cable Mechanical Impact Testing Equipment / Mechanical Tests For Flexible Cables

MT818 Mining Cable Mechanical Impact Testing Equipment / Mechanical Tests For Flexible Cables

MT818 Mining Cable Mechanical Impact Testing Equipment / Mechanical Tests For Flexible Cables

MT818 Mining Cable Mechanical Impact Testing Equipment / Mechanical Tests For Flexible Cables
