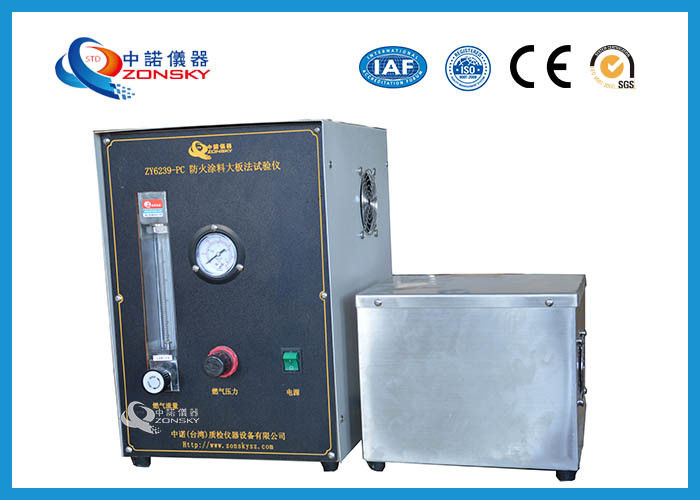

Micro Controlled Flame Test Equipment 820*820*1500 MM With Observation Window

China Micro Controlled Flame Test Equipment 820*820*1500 MM With Observation Window supplier

Large Image :  Micro Controlled Flame Test Equipment 820*820*1500 MM With Observation Window

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6239A-PC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Contact Now
Detailed Product Description
Warranty: 12 Months Material: Stainless Steel
Temperature Uniformity: ± 2.5℃ Wire Diameter: 5 MM
Size: L820 * W820 * H1500 MM Power: Power: 1.5KW, AC 220V / 50HZ



Micro Controlled Flame Retardant Testing Equipment / Test Chamber





1. Application



This test method can be used for the determination of elastic nonwoven floor coatings such as refractory rubber coatings, refractory polyethylene asbestos tiles and flame retardancy of fireproof felt. Complying with GB/T12441-2005 (Appendix C) FED.TEST METHOD STD.NO 501A; (FLOOR COVERINGS, RESILIENT NONTEXTILE: SAMPLING AND TESTING) METHOD 6411 "FIRE RESISTANCE" test standard.





2. Performance parameters



(1) Rotator flowmeter can adjust combustion gas flow.



(2) The gas source is natural gas and compressed air.



(3) High precision pressure regulating valve to regulate the gas pressure required by the standard.



(4) The machine is equipped with a strong exhaust system.



(5) Observe combustion with visual images;



(6) Refractory material is high temperature calcium silicate board.



(7) Adopt 16 bit high precision card + computer control, WINDOWS XP operation interface.



(8) The machine consists of three parts: a combustion hood, a combustion car and a control box.



(9) The front door has an observation window, which can observe the burning situation at any time.



(10) The HD camera system equipped with this device can save the video of the test process.



(11) The flue is divided into horizontal flue and vertical flue. The horizontal flue floor is made of thin steel plate.



(12) Sample holder: the horizontal flue is equipped with a sample clip, which is made of low carbon steel.



(13) Power: 1.5KW, AC 220V / 50HZ



Micro Controlled Flame Test Equipment 820*820*1500 MM With Observation Window

Micro Controlled Flame Test Equipment 820*820*1500 MM With Observation Window

Micro Controlled Flame Test Equipment 820*820*1500 MM With Observation Window

Micro Controlled Flame Test Equipment 820*820*1500 MM With Observation Window

Micro Controlled Flame Test Equipment 820*820*1500 MM With Observation Window

FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
