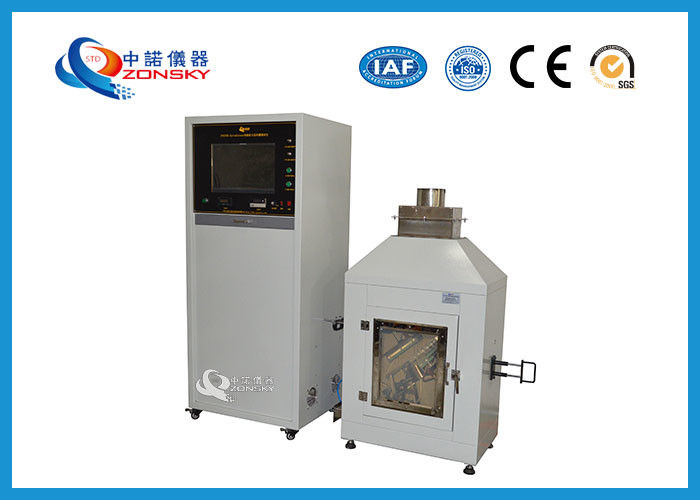

Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test

China Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test supplier
Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test supplier Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test supplier Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test supplier

Large Image :  Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6235B-PC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Contact Now
Detailed Product Description
Warranty: 12 Months Material: Stainless Steel
Guard Net: 3mm Steel Wire Ignition System: High Voltage Electronic Ignition
Control System: Windows XP Operation System Radiator: Power 500W



Micro Controlled Thermal Radiation Flame Propagation Tester





1. Application



It is suitable for evaluating the performance of single or composite rigid material, adhesive coating material, flexible material with thickness greater than 5 mm. Compliance with NFP 92501 "Safety against fire building materials Reaction to fire tests used for rigid materials or flexible materials thicker than 5mm"; TB/T2639 "Fire resistance test firing test method for materials used in railway vehicles"





2. Performance Parameters



(1) The test data are: Fire Index: I flame uniform height index: S, longest Fire Index: H burning fever index.

Glass rotator flowmeter regulates combustion torch flow.



(2) The stainless steel test box is made of fire-resistant material with transparent observation window and stainless steel tubular air inlet. It is equipped with filtering device to shield indoor pollution sources.



(3) Radiator: power 500W, radiation surface of the radiator is 100mm quartz dish.

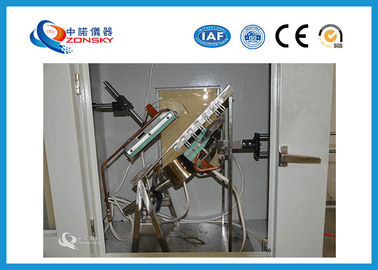

(4) Sample support bracket: 45 degree test bracket, equipped with stainless steel indicating ruler to calculate flame spread interval.



(5) Guard net: made of diameter 3mm steel wire.



(6) Ignition device: there are two movable ignition devices, one is the lower part of the sample, and the other is the upper part of the sample.



(7) High precision pressure regulating valve to regulate the required pressure of standard.



(8) Ignition system: high voltage electronic ignition.



(9) The thermocouple at the top and inlet can monitor the temperature and display the numerical state of the temperature difference in real time.



(10) Controlled by microcomputer and software, the built-in test results such as flame index and burning index can be automatically counted and printed.



(11) The computer control system Windows XP operation system is adopted.



Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation TestVertical Flammability Test Apparatus For Thermal Radiation Flame Propagation TestVertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test



Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test

Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test

Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test

Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test

Vertical Flammability Test Apparatus For Thermal Radiation Flame Propagation Test



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
