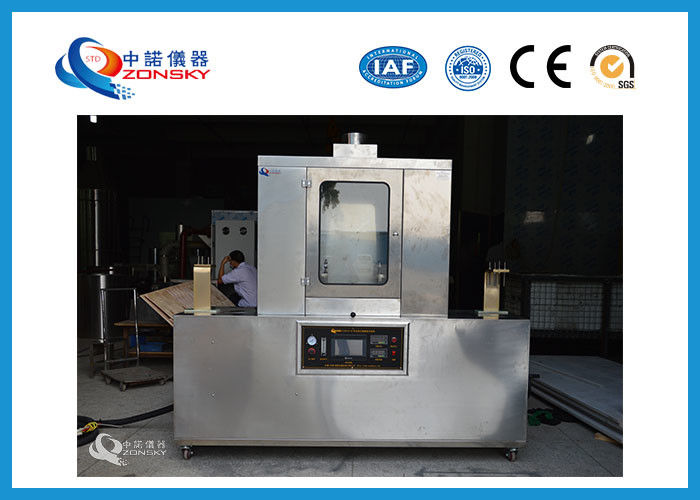

MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment

China MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment supplier
MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment supplier MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment supplier MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment supplier

Large Image :  MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6014P

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Detailed Product Description
Material: Stainless Steel Standards: MT386, MT818
Chamber Size: L1100 * W495 * H910 MM Load Current: 10 ~ 3000 A
Flame Height: 125 ± 10 MM Burning Time Range: 0~99.99 S/m/h
High Light:

flammability test apparatus

,

flammability testing labs



MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment





1. Application



Coal mine cable burning tester is designed and manufactured according to the corresponding requirements of MT386-1995 coal industry standard. It is suitable for the flame retardant test of MT818-2009 coal mine flame retardant cable and flame retardant cable joint.





2. Standards



MT386-1995, MT818-2009





3. Main Technical Parameters



(1) Input voltage: AC 220V, 50Hz



(2) The outline size is L2080 * W600 * H1950 mm, and the material is SUS304# stainless steel plate.



(3) The size of the combustion chamber is L1100 * W495 * H910 mm, the volume is more than 0.5 m3, and the material is SUS304# stainless steel plate.



(4) Load current: 10 ~ 3000 A continuously adjustable.



(5) The angle of the burner: vertical 90 degrees.



(6) Temperature measurement system: intelligent PID temperature control table and K thermocouple match. Its readings range from 0 to 999.9 ℃.



(7) Burning time range: 0~99.99 s/m/h



(8) Duration of combustion duration: 0~99.99 s/m/h



(9) Standard sample specification: L > 1800 mm





4. Machine Description

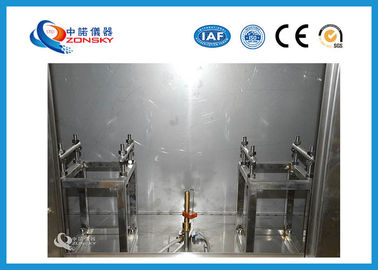

Test chamber



The size of the combustion chamber is L1100 * W495 * H910 mm, and the material is SUS304# stainless steel plate. The test chamber should be sealed around the opening of a 120 mm port on both sides of the box for loading the sample. At the middle of the top of the tank, a 158mm outlet is used to install the exhaust fan.

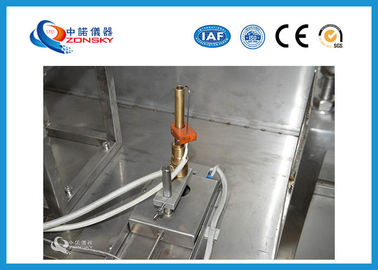

Burner



(1) For methane gas burner and its matching flowmeter, material is H62 brass. Blowlamp structure as shown in Figure 3) Blowlamp equipped with regulator to control methane inflow rate, the external introduction of air adjustable.



(2) Standard power: 2000 W.



(3) The diameter of the nozzle is 0.90 ± 0.03 mm, the length of the lamp is 1.60 ± 0.05 mm, the height between the nozzle and the air inlet is 102 mm, and the diameter of the nozzle is 9.5 mm.



(4) Spray lamp angle: vertical 90 degrees (vertical axis is maintained in the vertical plane and 90 degrees angle with the vertical direction), air intake from the air, internal flame 75 ± 5 mm, external flame 125 ± 10 mm, adjustable.



Fire source



(1) Fuel: gas or methane (methane content should be more than 98%).



(2) The flame height is 125 ± 10mm and the internal flame height is 75 ± 5 mm.



(3) Ignition for automatic high voltage ignition.



MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing EquipmentMT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment



MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment

MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment

MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment

MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment

MT386 Stainless Steel Mine Cable Load Combustion Test Chamber / Testing Equipment



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
