High Accuracy Flammability Testing Equipment Single Wire And Cable Inclined Combustion Test

China High Accuracy Flammability Testing Equipment Single Wire And Cable Inclined Combustion Test supplier
High Accuracy Flammability Testing Equipment Single Wire And Cable Inclined Combustion Test supplier High Accuracy Flammability Testing Equipment Single Wire And Cable Inclined Combustion Test supplier

Large Image :  High Accuracy Flammability Testing Equipment Single Wire And Cable Inclined Combustion Test

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6014C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Contact Now
Detailed Product Description
Warranty: 12 Months Material: Stainless Steel
Tilt Angle: 600 Flame Height: 20 MM
Dimension: 610 X 305 X 355 MM Accuracy: 0.1S

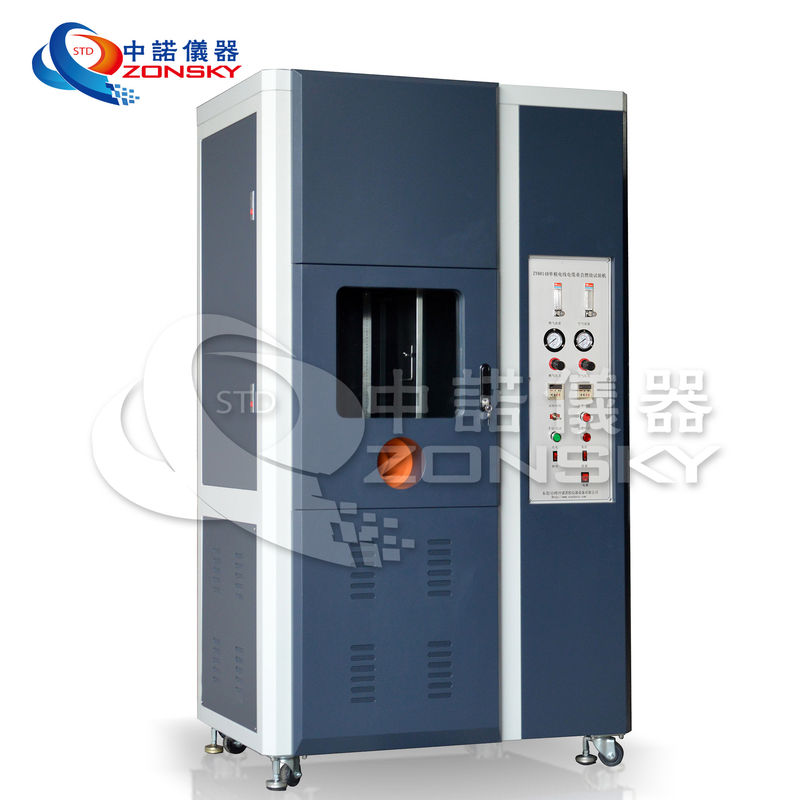

Single Wire and Cable Inclined Combustion Tester / Flammability Testing Equipment





1. Description

This machine is suitable for the flame retardancy of a single wire and cable when the flame is directly burned under the inclined condition.





2. Standards

Comply with GB/T 12666.3 - 2008 test standard. The two ends of the specimen are fixed and placed vertically on the three side of the metal plate.





3. Performance parameters



(1) Standard 500 W propane burner



(2) Ignition is automatic high voltage electric fire.



(3) Tilt angle: 600



(4) Interior flame height: 20 mm



(5) Timer: 0 ~ 99.99S, accuracy 0.1S



(6) Fuel: gas and methane (customer supplied)



(7) When setting the combustion time to the preset time, the machine will stop ignition automatically.

Metal shield: high 610 mm, width 305 mm, 355 mm deep, front and top open, bottom closed.



High Accuracy Flammability Testing Equipment Single Wire And Cable Inclined Combustion Test

High Accuracy Flammability Testing Equipment Single Wire And Cable Inclined Combustion Test

High Accuracy Flammability Testing Equipment Single Wire And Cable Inclined Combustion Test

High Accuracy Flammability Testing Equipment Single Wire And Cable Inclined Combustion Test

High Accuracy Flammability Testing Equipment Single Wire And Cable Inclined Combustion Test



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
