Vertical Torsion Test Equipment / High Precision Torsion Test Lab For Marine Cables

China Vertical Torsion Test Equipment / High Precision Torsion Test Lab For Marine Cables supplier

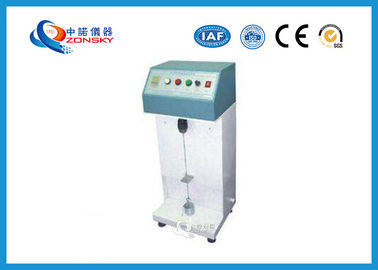

Large Image :  Vertical Torsion Test Equipment / High Precision Torsion Test Lab For Marine Cables

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6030A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set / Month
Contact Now
Detailed Product Description
Material: Stainless Steel Warranty: 12 Months
Temperature Range: - 5 ℃ ~ 100 ℃ Spacing Between Fixtures: 300 MM
Fixture: Chuck Type Dimension: 400 X 350 X 940 MM



Vertical Torsion Test Equipment / Test Apparatus For Marine Cables





1. Application



It is suitable for different types of metal wires and the torsion strength of enameled wire. Torsional motion is carried out until the sample is twisted or the paint film of enameled wire falls off to expose the conductor. The number of times of torsion resistance is recorded to check whether the wire properties meet the wire specifications.





2. Performance parameters



(1) Dimension: 400 x 350 x 940 mm



(2) Spacing between fixtures: 300 mm



(3) Fixture: chuck type



(4) Rotation times: 0 ~ 999999 times, can be set arbitrarily



(5) It is suitable for testing 0.2 ~ 1.8 mm wires.



(6) Action part: PLC+ stepper motor control, high precision angle control



(7) Load: 100g, 200g and 500g each.



(8) Working dimensions of thermostat: long 1.5m, wide 0.6m, high 1.75m



(9) Constant temperature range: - 5 ℃ ~ 100 ℃



(10) Continuous monitoring of cables: current 0.25A, voltage 12V
