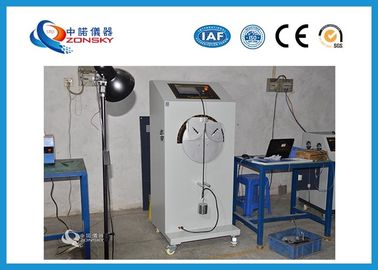

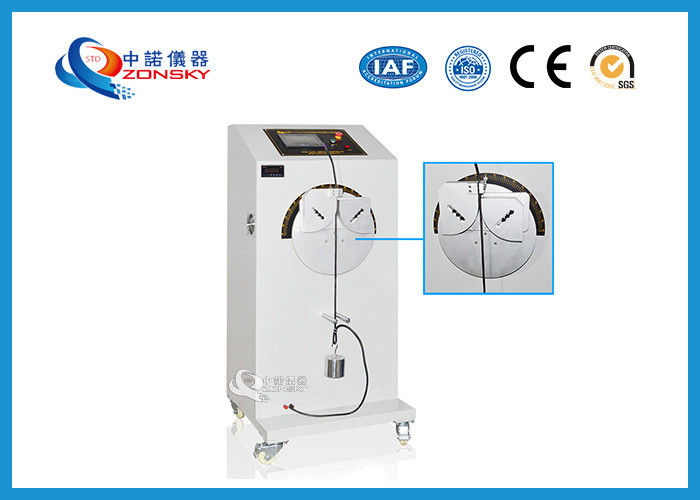

Touch Screen Control Torsion Test Equipment , Cable Torsion Pendulum Testing Machine

Charging Pile Cable Torsion Pendulum Testing Machine / Test Equipment

1. Application

ZY6015B charging pile Cable torsion pendulum testing machine is suitable for TUV, VDE, UL and other high flexible cable detection requirements. The structure of the machine is a 6-position tandem. It is mainly used for the repeated torsion test of metal wires after longitudinal installation to detect the performance and defects of metal wires under plastic deformation in the repeated torsion test. Cables providing power or transmitting signals for robotic arms are widely used by wire and cable manufacturers, universities, commodity inspection departments and scientific research institutes because of their reasonable structure, beautiful appearance, precise control and simple operation.

2. Main Technical Parameters

(1) Work power supply: AC 220V, 50/60Hz 10A

(2) Total power is 1.2kW

(3) Folding speed: 5 - 30 cycle /min adjustable

(4) Spindle rotation: about 90 degrees centigrade

(5) Counter: 0 ~ 99999 times can be preset

(6) Equipment size: L700 * W560 * H1560 mm

(7) Test station: single station

(8) Clamp radian: R40 mm

(9) Fixed plate spacing: 40 mm

(10) Control mode: touch screen control

(11) Load current: 0 ~ 1A can be set

3. Note

(1) The equipment must be placed in a stable, strong (table) surface, not suitable for tilting.

(2) When the equipment is in use, it must be grounded reliably to avoid electric shock.

(3) The weight of equipment matching should be carefully taken in place to prevent damage.

(4) The environment for this equipment should be dry and wet, so as to prevent equipment from being rusted.

(5) If the equipment is not used for a long time, it is necessary to energize the equipment regularly to prevent circuit faults.

(6) Timely sorting out test equipment to keep the equipment clean.
