Wind Power Cable Low Temperature Torsion Test Equipment

1. Description

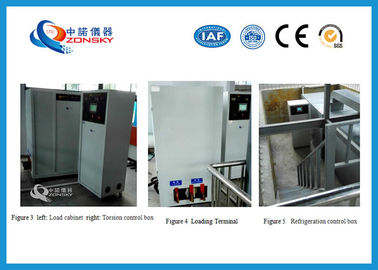

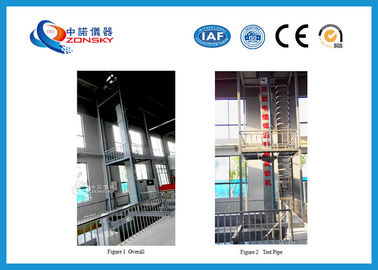

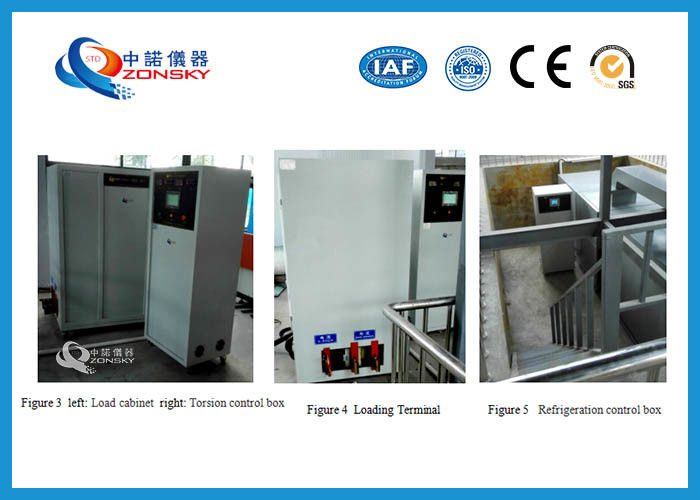

ZY6237 Wind Power Cable Low Temperature Torsion Test Machine is suitable for all cables in wind turbines which are directed from engine room to tower and need to be twisted during the process of wind blower to wind. The main components of electrical appliances are Siemens, Omron and Zhengtai products, which have long durability. A series of protective devices, such as self-locking switch made in Shanghai and over-temperature sound-light alarm, are selected. The test box is mainly imported from France, the Taikang all closed condensing compressor unit. Excellent performance standard unit, unit lifespan up to 15 years, in line with international environmental protection requirements, Shanghai and France networking testing. Two sets of cascade refrigeration units are selected for the whole refrigeration system. Environmental R404A.R23 refrigerant is used as refrigerant, pressure switch, vapor-liquid separator, drying filter, expansion valve, solenoid valve and other imported brands are selected for refrigeration system. Italian imported products are selected for condenser, EBM brand fan for fan, high quality oxygen-free copper pipe for cryogenic pipeline and nitrogen charging. Welding, temperature balance using energy regulation technology for "unloading" balance temperature control mode, saving energy and other advantages. Circulating air duct adopts air conditioning air supply system, fan adopts special air conditioning long axis motor, centrifugal blade, stainless steel fin heater, refrigeration evaporator, circulating shutter. The air supply cycle is uniform and the temperature is reliable.

2. Standards

It conforms to NB/T31036-2012 "Twist Resistant Soft Cable for Wind Power Generation with Rating Voltage 1.8/3kv and Below Part 3: Torsion Test Method", GB/T 2423.1-2001 Test A: Low Temperature Test Method and GB/T 2423.2-2001 Test B: High Temperature Test Method IEC 794-1-F1 International Electrotechnical Commission Standard.

3. Main Technical Parameters

(1) Nominal volume: 1520 L

(2) Studio size: 400 x 300 x 2300 (mm)

(3) Test channel: 250 x 250 x 12600 (mm)

(4) Shape size: 1550 * 2500 * left height 1720 mm, right height 9620 mm, left and right channel shape size 640 * 540 mm

(5) The total weight is about 4500 Kg

(6) Cable test range: 3.0KV, diameter 25 mm below wind power cable test

(7) Test environmental conditions: ambient temperature is 25 C, relative humidity is less than 85% R.H, and there is no sample in the test box

(8) Test method: multi point test

(9) Temperature range: - 60 ~ 80℃

(10) Temperature fluctuation: ≤ 0.5℃

(11) Temperature uniformity: ≤ 3℃

(12) Heating time: adjustable

(13) Cooling time: average 0.7 ~ 1℃ / min

(14) Air conditioning duct: stainless steel centrifugal multi blade matching high temperature long axis air conditioning motor 1 set

(15) Refrigerants: R23, R404a

(16) Display size: 120*90*60 (mm) (high * width * depth)

(17) Operation mode: program mode and fixed value mode

(18) Way of setting: Mathematics input mode

(19) Accuracy: temperature ±0.2℃

(20) Temperature input force: PT100A

(21) Total power leakage circuit breaker: AC380V, 50HZ, three-phase four wire + protective ground wire

(22) Total machine power: 60KW
