Adjustable Speed Bend Test Equipment / 6-set Wire And Cable Swing Testing Machine

China Adjustable Speed Bend Test Equipment / 6-set Wire And Cable Swing Testing Machine supplier
Adjustable Speed Bend Test Equipment / 6-set Wire And Cable Swing Testing Machine supplier Adjustable Speed Bend Test Equipment / 6-set Wire And Cable Swing Testing Machine supplier Adjustable Speed Bend Test Equipment / 6-set Wire And Cable Swing Testing Machine supplier Adjustable Speed Bend Test Equipment / 6-set Wire And Cable Swing Testing Machine supplier

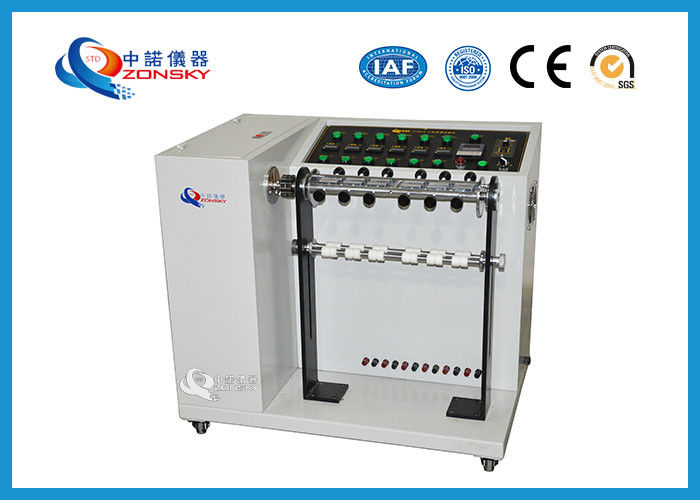

Large Image :  Adjustable Speed Bend Test Equipment / 6-set Wire And Cable Swing Testing Machine

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6015

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Detailed Product Description
Weight: 100 KGS Material: Stainless Steel
Warranty: 12 Months Test Speed: 10 - 60 Times / Min
Size: 85 X 60 X 75 CM Power: 95 W
High Light:

bending test apparatus

,

bending fatigue testing machine



Adjustable Speed Bend Test Equipment / 6-set Wire And Cable Swing Testing Machine





1. Description



The tester meets the requirements of UL817 and other relevant standards "General Safety Requirements for Soft Wire Components and Power Soft Wire". It is suitable for bending test of power supply line and DC line by relevant manufacturers and quality inspection departments.





2. Main Technical Indicators



(1) Stations: six groups, and six groups can be tested separately.



(2) Test speed: 10 - 60 times / min adjustable



(3) Bending angle: 30 degrees, 45 degrees, 60 degrees, 90 degrees, 120 degrees, 150 degrees, 180 degrees adjustable



(4) Test station: 6 plug lead tests each time



(5) Bending times: 0 - 999999 preset



(6) Poise weight: 50g, 100g, 200g, 300g, 500g



(7) Size: 85 x 60 x 75 cm



(8) Weight (approx.): 100 kg



(9) Working power supply: AC 220V / 50Hz



(10) Power: 95 W





3. Maintenance and Care



(1) The driving mechanism and moving parts of the tester should be lubricated regularly and regularly tightened.



(2) All power should be cut off while working, and no weight should be placed on the swing mechanism.



(3) On the swing mechanism, spray rust inhibitor should be sprayed regularly to protect the machine surface.



(4) Do the grounding work well.
