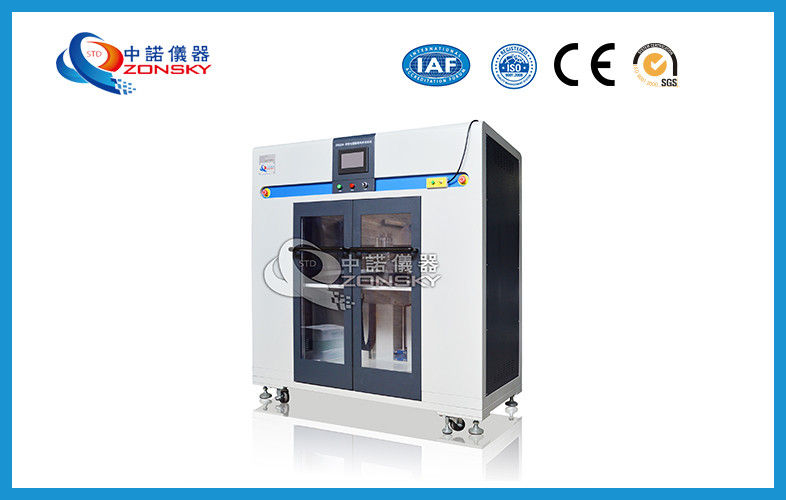

High Flexible Cable Chain Bending Fatigue Test Machine
Suitable for repeated U-bending fatigue tests of high flexible cables such as TUV, VDE and UL, which require continuous bending and high-speed movement, such as internal manifestation cabling, high-speed towing system cables, connecting cables of moving parts of machines, internal wiring of machines, and repeated bending fatigue of industrial towed cables and industrial robot cables test. The function of the machine is designed to run in front and back synchronous double track. It has independent test parameter setting, test data acquisition and test results identification.
For enterprises to improve the efficiency of testing and reduce energy. It is mainly used to detect whether the flexible cable is short-circuited and the insulating sheath is cracked, damaged or other abnormal phenomena after repeated high-speed U-bending tests. In order to detect the plastic deformation of metal conductors in repeated high-speed U-bending tests and highlighted defects.
It meets the standards of DIN VDE 0295, VDE 0281, IEC 60228 and CRIA 0003.2-2016, Part 2: Test Methods for Industrial Robot Cables.
3. Performance parameters
|Test station||A total of 4 samples for the two groups|
|Power failure signal voltage||DC24V|
|Total core number of towed cable||30 cores|
|Total number of cables||Less than 180 cores|
|Operation schedule||0-600 mm can be set at will|
|Test line speed||0-2.0 m/s can be set arbitrarily|
|Test speed||80 times/minute|
|Counting digit||0-9999999 times arbitrary setting|
|Transmission mechanism||Serve motor plus reducer|
|Test space||Each workstation fitted with a drag chain width of 40 - 150mm|
|Bending radius||Fixed height 30mm-250mm up and down adjustment|
|Suitable for 15mm-125mm drag chain|
|Horizontal bending test||The sample is fixed in the corresponding chain, followed by the chain bending test in the horizontal direction back and forth|
|Machine size||L1600m * W650mm * H1750 mm|
|Power||AC220V, 50Hz, 2500VA|
