LCD Screen Tensile Strength Testing Equipment , Computerized Tensile Testing Machine

China LCD Screen Tensile Strength Testing Equipment , Computerized Tensile Testing Machine supplier

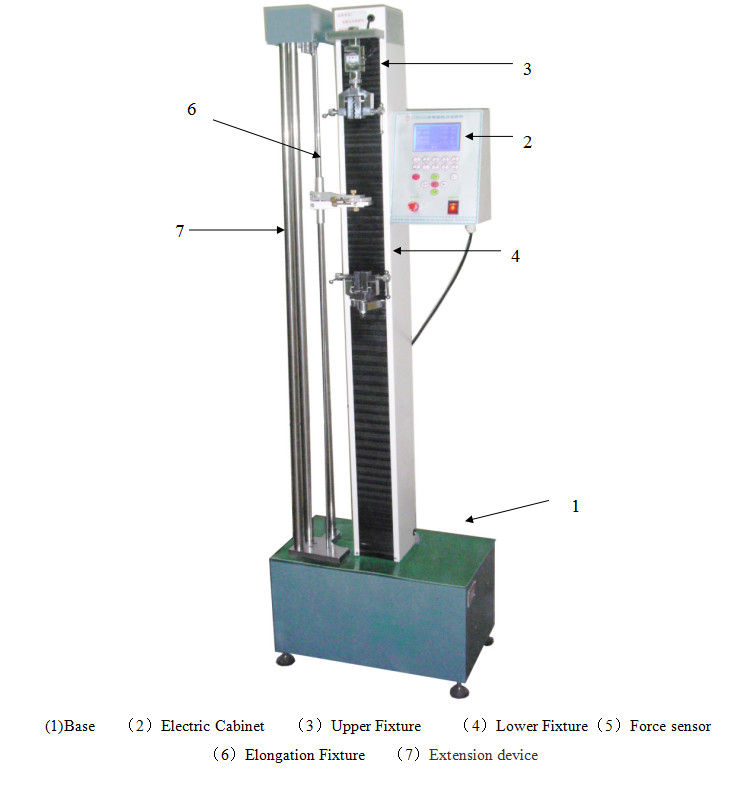

Large Image :  LCD Screen Tensile Strength Testing Equipment , Computerized Tensile Testing Machine

Product Details:

Place of Origin: DONGGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6010A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set / Month
Contact Now
Detailed Product Description
Material: Stainless Steel Monitor: LCD Screen
Load Resolution: 0.01 KG Maximum Stroke: 800 MM
Speed Accuracy: 50 ± 0.5 MM Weight: About 75 KGS

Microcomputer Tensile Elongation Tester / Testing Equipment





1. Description



This machine can measure the tensile force, tearing, peeling, relay resistance and other physical properties of various materials. It is used for wire elongation, tensile strength test and textile, leather tensile test.





2. Standards



According to UL, CSA, CCC, VDE, GB, ASTM, DIN and JIS standards.





3. Technical Parameters



(1) Measurement selection: 10, 20, 50, 100, 200kg, 300kg optional.



(2) Load resolution: 0.01 kg.



(3) Maximum stroke: 800 mm.



(4) Test speed: 50 ~ 500 mm/min arbitrary adjustable.



(5) Speed accuracy: 50±0.5 mm, 500±1.0 mm



(6) Monitor: LCD screen. The burst value can be displayed with peak locking function.



(7) Drive mode: AC variable frequency motor.



(8) Elongation (elongation) shows: resolution: 0.01 %



(9) Tensile strength (kg/cm2) = rupture value (kg) / slice cross-sectional area (cm2).



(10) Unit conversion: Kgf/N or Kgf/Lb



(11) Outline size (W * D * H): 45cm * 36cm * 175cm



(12) Weight: 75 kg
