ASTM Tensile Strength Testing Equipment For Copper Material Wire Cable Elongation Test

China ASTM Tensile Strength Testing Equipment For Copper Material Wire Cable Elongation Test supplier

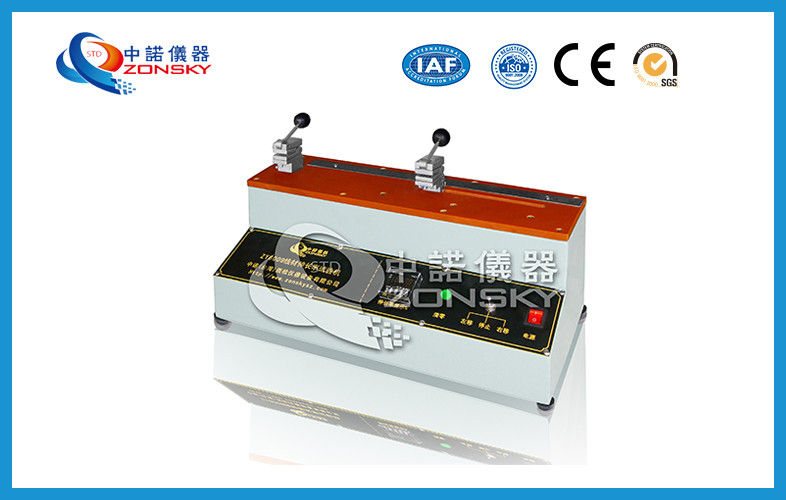

Large Image :  ASTM Tensile Strength Testing Equipment For Copper Material Wire Cable Elongation Test

Product Details:

Place of Origin: DONGGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6009A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set / Month
Contact Now
Detailed Product Description
Tensile Speed: 200 ~ 300 Mm/min Tensile Force: 10, 20, 50 Kgs
Resolution: 0.01 Kg Specimen Length: > 250 Mm
Extension Range: 0 ~ 60% Outline Size: L700 * W260 * H190 Mm

Hot Selling Copper Material Wire & Cable Elongation Tester / Testing Equipment ASTM, IEC Standard



Description:

This instrument is suitable for testing the tensile force and elongation elongation of copper wire, aluminum wire, aluminum magnesium alloy wire, iron wire and other metal wires. The circuit adopts operational integrated circuit and process control, without manual calculation, automatically displays the percentage of elongation and tensile force; the length of elongation uses laser sensing technology, high sensing accuracy, the error of the whole range is (+0.3%). Conform to: UL, CSA, GB, ASTM, VDE, IEC test standard.



Performance parameters:

Suitable for wire OD: Ф0.08 mm ~ Ф0.8 mm

Tensile speed: 200 ~ 300 mm / min

Tensile force: 10, 20, 50 kg

Resolution: 0.01 kg

Specimen length: > 250 mm

Extension range: 0 ~ 60%

Elongation resolution: 0.1%

The outline size: L * W * H:7 00 * 260 * 190 mm
