Simulated Solar Radiation Environmental Test Chamber ± 2.5% R.H Humidity Deviation

China Simulated Solar Radiation Environmental Test Chamber ± 2.5% R.H Humidity Deviation supplier

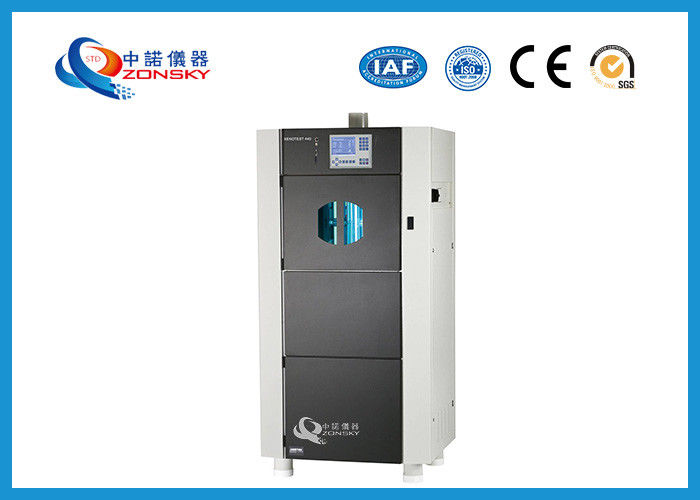

Large Image :  Simulated Solar Radiation Environmental Test Chamber ± 2.5% R.H Humidity Deviation

Product Details:

Place of Origin: DONGGUAN, CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6074-ZN4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Contact Now
Detailed Product Description
Standards: ASTM D 2565 External Dimension: 1050 X 1050 X 1750 MM
Material: Baking Finish Warranty: 12 Months
Humidity Deviation: ± 2.5% R.H Humidity Range: 30 ~ 98% R.H
High Light:

xenon weather meter


xenon lamp weather resistance test chamber

Simulated Solar Radiation Environmental Test Chamber



I. Application


Xenon lamp test chamber uses xenon arc lamp which can simulate all sunlight spectrum to reproduce destructive light wave in different environment. It can provide corresponding environment simulation and accelerated test for scientific research, product development and quality control. Xenon lamp test box can be used to select new materials, improve existing materials or evaluate the durability of materials after composition changes in the test, it can be a good simulation of different environmental conditions, materials exposed to sunlight changes. Meet the criteria: GB/T16585-1996, GB14522-93, GB/T16422.3-97, ASTM D2565.



2. Standards


GB/T16585-1996, GB14522-93, GB/T16422.3-97, ASTM D2565

Comply with GB/T16585-1996, GB14522-93, GB/T16422.3-97 and ASTM D2565 standards.



3. Temperature and Humidity Operation Control System


Controller: imports programmable full touch 7 inches


Accuracy range: setting accuracy: temperature (±0.1℃), humidity (±2% R.H), indicating accuracy: temperature (±0.1℃), humidity (±1% R.H)


Temperature and humidity sensor: platinum resistance.PT 100 Omega / MV


Blackboard temperature: bimetallic blackboard thermometer


The water supply system: humidified by automatic control, and xenon lamp is used for cooling and circulating water.


Circulatory system: heat resistant and low noise air conditioner motor. Multi leaf centrifugal wind wheel.


The control system: mainly composed of operation panel, central controller, various key switches, status indicator lights, executive electrical appliances and so on.


 External dimension  W x D x H: 1050 x 1050 x 1750 mm
 Internal dimension  W x D x H: 500 x 500 x 600 mm
 Temperature range  0℃~80℃
 Temperature deviation

 ±2℃ (without illumination)

 Humidity range  30 ~ 98% R.H
 Spectral wavelength  300nm ~ 800nm
 Xenon lamp power  1.8KW

 Life span

 1600 hours
 Blackboard temperature  85±3℃
 Power  About 4KW; 220V±10%, 50HZ



5. The Electrical Control Part Of The Test Box


This part is the core part of the test box.


The main switch of the power supply is an air pressure switch, which controls the whole circuit part.


Safety protection measures of the electronic control part: when the control system detects the following protective devices (single row) action, it should be able to automatically cut off the whole system, and can give an alarm prompt;


The workshop is over temperature protected.


Power shortage and leakage protection;


The motor is over-current protection.


The overpressure / overload protection of the refrigerator.


Heater / humidifier short circuit / overload protection;


Fuse fusing protection;
