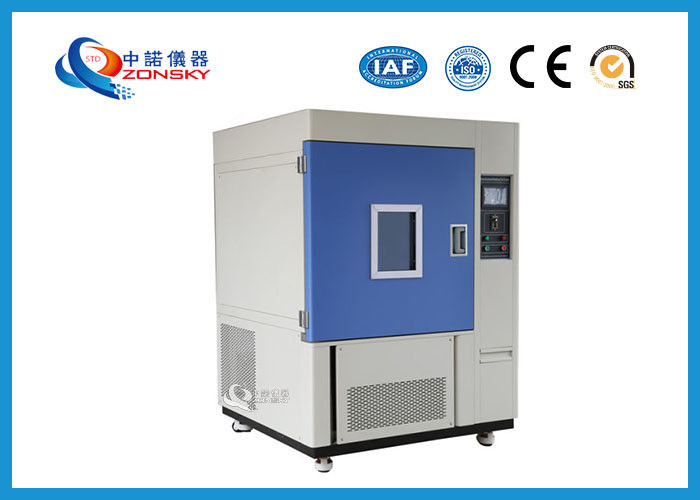

Environmental Xenon Test Equipment , Accelerated Climatic Test Chamber

China Environmental Xenon Test Equipment , Accelerated Climatic Test Chamber supplier

Large Image :  Environmental Xenon Test Equipment , Accelerated Climatic Test Chamber

Product Details:

Place of Origin: DONGGUAN, CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6074-ZN9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Contact Now
Detailed Product Description
Standards: ASTM D 2565 External Dimension: 1050 X 1050 X 1750 MM
Material: Baking Finish Warranty: 12 Months
Humidity Deviation: ± 2.5% R.H Humidity Range: 30 ~ 98% R.H
High Light:

xenon arc test chamber

,

xenon weather meter

Environmental Xenon Arc Lamp Accelerated Climate Testing Equipment





I. Application



Xenon lamp test chamber uses xenon arc lamp which can simulate all sunlight spectrum to reproduce destructive light wave in different environment. It can provide corresponding environment simulation and accelerated test for scientific research, product development and quality control. Xenon lamp test box can be used to select new materials, improve existing materials or evaluate the durability of materials after composition changes in the test, it can be a good simulation of different environmental conditions, materials exposed to sunlight changes. Meet the criteria: GB/T16585-1996, GB14522-93, GB/T16422.3-97, ASTM D2565.





2. Standards



GB/T16585-1996, GB14522-93, GB/T16422.3-97, ASTM D2565

Comply with GB/T16585-1996, GB14522-93, GB/T16422.3-97 and ASTM D2565 standards.





3. Technical Specifications and Parameters



(1) Studio size: W500 * D500 * H600 mm



(2) Appearance size W * D * H about 1050 x 1050 x 1750 mm



(3) Temperature range: 0℃ ~ 80℃



(4) Temperature deviation: ±2℃ (without illumination).



(5) Humidity range: 30 ~ 98% R.H



(6) Humidity deviation: ±2.5%R.H (humidity greater than 75%R.H) ±3%R.H (humidity less than 75%R.H) (without illumination)



(7) Type of light source: imported air cooled solar long spectrum xenon lamp (average life expectancy of 1600 hours).



(8) Rainfall time: 1 ~ 9999 minutes, adjustable.



(9) Rainfall cycle: 1 ~ 240 minutes, interval (break) adjustable



(10) Spectral wavelength: 300 nm ~ 800 nm



(11) Xenon lamp power: 1.8KW (lifespan: 1600 hours)



(12) Light source wavelength range: 300 - 800 nm



(13) Heating power: about 4 KW



(14) Humidifying power: about 2 KW



(15) Light source irradiance: 290 ~ 800 nm: 100 ~ 600 w/m2



                                              300 ~ 890 nm:200 ~ 1200 w/m2



                                              340 nm: 0.3 ~ 1.2 w/m2



                                              420nm: 20 ~ 120 w/m2



(16) Distance from arc center to sample frame: 350 ~ 380 mm



(17) Rotating speed of sample basket: ≥ 1 r/min



(18) Water spray cycle:



A.Sprinkler time: 0 ~ 99h59min, continuous adjustable



B. Stopping time: 0 ~ 99h59min, continuous adjustable.



(19) Illumination time: continuous programming control



(20) Blackboard temperature: 85±3℃



(21) Refrigeration mode: mechanical refrigeration and air cooling



(22) Total power and power supply: about 4KW; 220V±10% 50HZ



(23) The main technical parameters of the above products refer to the measurement of temperature and humidity after two hours of constant temperature and humidity at room temperature below 26℃, relative humidity (< 85% R. H) and no-load conditions in the studio.



 External dimension  W x D x H: 1050 x 1050 x 1750 mm
 Internal dimension  W x D x H: 500 x 500 x 600 mm
 Temperature range  0℃~80℃
 Temperature deviation

 ±2℃ (without illumination)

 Humidity range  30 ~ 98% R.H
 Spectral wavelength  300nm ~ 800nm
 Xenon lamp power  1.8KW

 Life span

 1600 hours
 Blackboard temperature  85±3℃
 Power  About 4KW; 220V±10%, 50HZ
