Programmable Xenon Test Equipment , ASTM D 2565 Weatherproof Xenon Arc Chamber

China Programmable Xenon Test Equipment , ASTM D 2565 Weatherproof Xenon Arc Chamber supplier

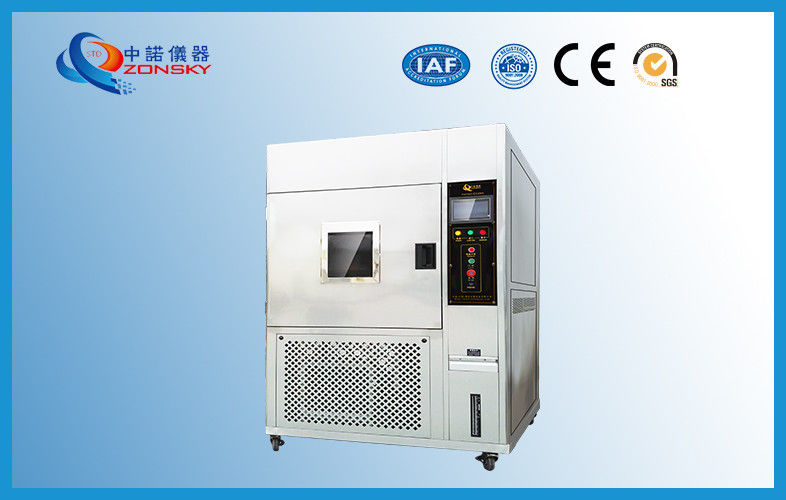

Large Image :  Programmable Xenon Test Equipment , ASTM D 2565 Weatherproof Xenon Arc Chamber

Product Details:

Place of Origin: DONGGUAN, CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6074-ZN11

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Detailed Product Description
Standards: ASTM D 2565 External Dimension: 1050 X 1050 X 1750 MM
Material: Stainless Steel SUS304# Warranty: 12 Months
Temperature Range: 0℃~80℃ Humidity Range: 30 ~ 98% R.H
High Light:

xenon arc test chamber

,

xenon lamp weather resistance test chamber



ASTM D 2565 Programmable Xenon Arc Lamp Weatherproof Test Chamber





I. Application



Xenon lamp test chamber uses xenon arc lamp which can simulate all sunlight spectrum to reproduce destructive light wave in different environment. It can provide corresponding environment simulation and accelerated test for scientific research, product development and quality control. Xenon lamp test chamber can be used to select new materials, improve existing materials or evaluate the durability of materials after composition changes in the test, is a good simulation of different environmental conditions that materials exposed to sunlight changes.





2. Standards

GB/T16585-1996, GB14522-93, GB/T16422.3-97, ASTM D2565



Comply with GB/T16585-1996, GB14522-93, GB/T16422.3-97 and ASTM D2565 standards.





3. Main technical parameters



3.1Humidity deviation: + 2.5% R.H (Humidity≥75%R.H), + 3% R.H (Humidity ≤75%R.H) (without light)



3.2 Types of Light Sources: imported air-cooled all-solar spectral long arc xenon lamp (average service life of 1600 hours or so)



3.3 Rainfall time: 1~9999 minutes, adjustable.



3.4 Rain cycle: 1~240 minutes, interval (break) adjustable



3.5 Light source wavelength range: 300-800nm



3.6 Humidifying power: about 2KW



3.7 Light source irradiance: 290~800nm: 100~600w/m2

                                             300~890nm: 200~1200w/m2

                                             340nm: 0.3~1.2w/m2

                                             420nm: 20~120w/m2



3.8 Distance between arc center to sample frame: 350 ~ 380mm



3.9 Rotating speed of sample basket: ≥1r/min



3.10 Water spray cycle:



Water spray time: 0 ~ 99h59min, continuous adjustable



Stop time: 0 ~ 99h59min, continuous adjustable.



3.11 Lighting time: continuous programmed control.



 External dimension  W x D x H: 1050 x 1050 x 1750 mm
 Internal dimension  W x D x H: 500 x 500 x 600 mm
 Temperature range  0℃~80℃
 Temperature deviation

 ±2℃ (without illumination)

 Humidity range  30 ~ 98% R.H
 Spectral wavelength  300nm ~ 800nm
 Xenon lamp power  1.8KW

 Life span

 1600 hours
 Blackboard temperature  85±3℃
 Power  About 4KW; 220V±10%, 50HZ
