Cross Linked Cable Cutting Equipment / XLPE Cable Slicing Machine 150 mm/min Cutting Speed

China Cross Linked Cable Cutting Equipment / XLPE Cable Slicing Machine 150 mm/min Cutting Speed supplier

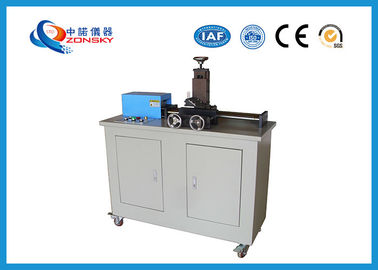

Large Image :  Cross Linked Cable Cutting Equipment / XLPE Cable Slicing Machine 150 mm/min Cutting Speed

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6012B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set / Month
Contact Now
Detailed Product Description
Standard: IEC60502 Maximum Working Length: 400 Mm
Cutting Thickness Range: 0.5~2.0 Mm Machine Dimensions: 800 X 600 X 450 Mm
Drive: Motor 0.37kw Cutting Speed: 150 Mm/min

Cross Linked Cable Cutting Equipment / XLPE Cable Slicing Machine 150 mm/min Cutting Speed



1. Product Specifications



This machine is applicable to GB/T2951-2008 "General Test Methods for Cable and Cable Insulation and Jacking Materials" and standard test requirements such as GB12706.1-2008, IEC60502-1:2004, GB11017-2002, IEC60502-1:2004.

Applicable to large cross-linked cables and control cables. It is an indispensable test instrument for preparing insulated and sheathed samples. It is used to complete the thermal extension test and tensile test of the sample (making standard dumbbell samples), and further evaluate the mechanical properties of the samples. And physical properties, so that the product meets the standard requirements.

The sliding part of the machine adopts the special dovetail slot of the machine tool and the precision drive screw to make the equipment run more smoothly and accurately.





2. Main Parameters



(1) Maximum working length: 400mm.

(2) Cutting thickness range: 0.5~2.0mm.

(3) It can be cut test piece diameter: Ф10 ~ Ф40 mm (cable section section, optional Ф160mm fixture plate).

(4) Cutting speed: fixed speed, about 150mm / min, factory standard type.

(Optional, 370W inverter motor, speed 0.1~300mm/min, adjustable.)

(5) Cutting method: the sample is fixed, the blade moves horizontally;

The knife holder is adjustable up and down, the range is up to about 150mm, and it is manually adjusted.

(6) Cutting tools: a random set of 1 (medium knife and cutting knife), sharp level.

(7) Drive: motor 0.37kw, electric type.

(8) Power: AC 220V/50Hz.

(9) Machine dimensions: about 800 x 600 x 450mm.



Cross Linked Cable Cutting Equipment / XLPE Cable Slicing Machine 150 mm/min Cutting Speed

Cross Linked Cable Cutting Equipment / XLPE Cable Slicing Machine 150 mm/min Cutting Speed

Cross Linked Cable Cutting Equipment / XLPE Cable Slicing Machine 150 mm/min Cutting Speed

Cross Linked Cable Cutting Equipment / XLPE Cable Slicing Machine 150 mm/min Cutting Speed

Cross Linked Cable Cutting Equipment / XLPE Cable Slicing Machine 150 mm/min Cutting Speed

Cross Linked Cable Cutting Equipment / XLPE Cable Slicing Machine 150 mm/min Cutting Speed





FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
