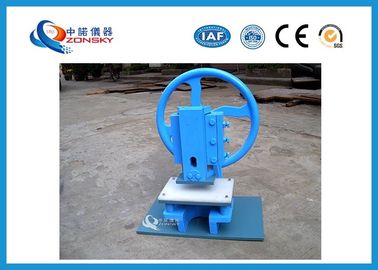

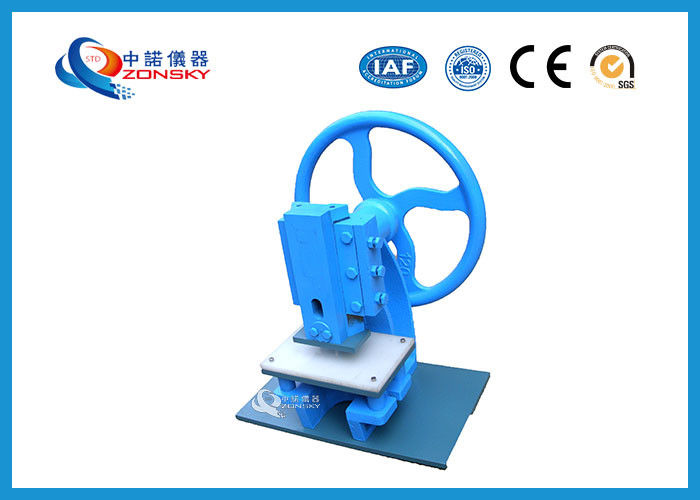

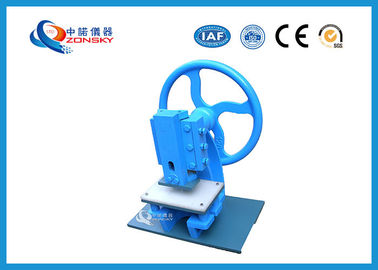

Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine

China Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine supplier
Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine supplier Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine supplier

Large Image :  Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6012

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set / Month
Contact Now
Detailed Product Description
Material: Paint Finish Standards: IEC, UL1581
Dimension: L430 * W340 * H530 Mm Base Plate: L430 * W270 Mm
Workbench Size: L230 * W150 Mm Slice Thickness: 1~12 Mm

Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine



1. Overview



The sample slicer is suitable for cutting rubber materials which are insulated or coated, and becomes a standard shape dumbbell test piece, which satisfies the test standards of IEC, K6301, UL1581, JIS, etc., for testing.

Installation instructions: The machine should be placed firmly on a horizontal work surface and should not be tilted.



2. Technical Parameters



(1) Slice thickness: 1~12mm

(2) Workbench size: L230*W150mm

(3) Base plate: L430*W270mm

(4) Overall shape size: L430*W340*H530mm



Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine



3. Operation Method



a) Place the rubber or plastic to be ground, thinned or ground to the thickness of the slicer (the rubber or plastic should be placed in the center of the table as much as possible to ensure the shape of the cut sample).

b) Place the dumbbell knife on the rubber or plastic with the knife edge placed toward the rubber.

c) Turn the manual turntable by hand and impact the dumbbell cone knife to cut the rubber or plastic into dumbbell-shaped test pieces.

When cutting the test piece, it is necessary to configure various dumbbell blades according to various requirements for cutting.



4. Maintenance Of The Machine



For long-term use, the blade edge must be sharp.

The instrument needs to periodically wipe a little calcium grease (butter).

Do not wash with water when cleaning. The cleaning agent must be of non-toxic and non-corrosive type.

After cleaning, dry it and let the machine return to its original state.



Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine

Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine

Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine

Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine

Manual Rubber and Plastic Sample Slicer / Insulation Materials Cutting Machine



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
