Intelligent Flammability Testing Equipment , 5mm Wire Flammability Test Chamber

Intelligent Fire Retardant Paint Combustion Tester / Flammability Test Chamber (Big Board Method)

1. Scope of Application

The test method for testing the flame-retardant properties of finishes coated on flammable substrates under specified conditions is also applicable to the determination of the flame-retardant time of finishes coatings.

2. Standards

GB/T12441-2005 (Appendix A).

3. Main parameters

A) Test station: 1 stations.

B) Temperature uniformity: ± 2.5℃

C) Sample size: L900 * W900 thickness of 5 mm, smooth surface.

D) Temperature control system: digital display temperature control table, which can record multiple sets of data at the same time.

E) Thermocouple: the outer diameter is not greater than 3 mm, the wire diameter is 0.5 mm, the accuracy is not less than the second level, and the range is 1300 ℃.

F) The error of the timer is not greater than 1 s/h.

G) Automatic alarm: the five sides of the back surface of the sample are thermometric, and the temperature is 220 ℃.

H) Gas source: liquefied petroleum gas or natural gas. (customer provided)

I) The blower air volume (1 ~ 5) m3/min can be adjusted.

J) Power requirements: AC 220 (± 10%) V / 50HZ

4. Equipment Structure

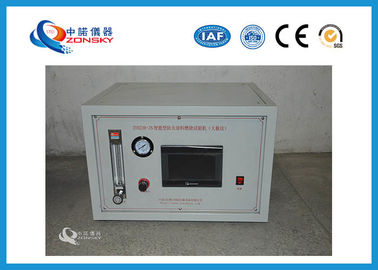

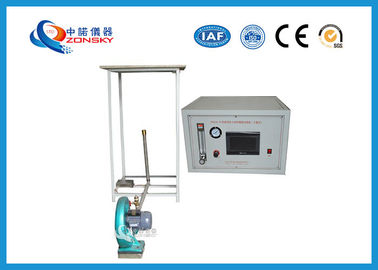

The structure of the instrument consists of four parts: main control box, blower, combustion bracket and combustion blower. The control box is movable.

5. Components and Materials

A) Chassis size: L820 * W820 * H1500 MM

B) The frame material is made of high quality 304 stainless steel square pass welding, the control box material is (t = 1.2mm) electrostatic steel plate, the surface is sprayed plastic treatment, more bright and clean, beautiful.

C) Torch: SUS304 material, made by our company.

6. Control System

A) The control box adopts a relay control system, and all electronic components adopt leading domestic brands, which can better guarantee the working performance and detection accuracy of the machine.

B) Temperature using imported intelligent P.I.D temperature controller (with automatic calculating function) and high precision PT100 thermocouple sensor and timer.

C) The equipment has the following safety protection devices: power overload, short circuit protection, control circuit overload protection, ultra-high temperature protection.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.

Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
