AC 220V 50HZ Flammability Testing Labs For Paving Material Radiation Heat Flux

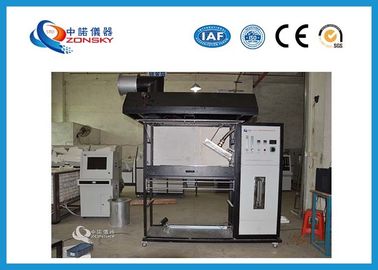

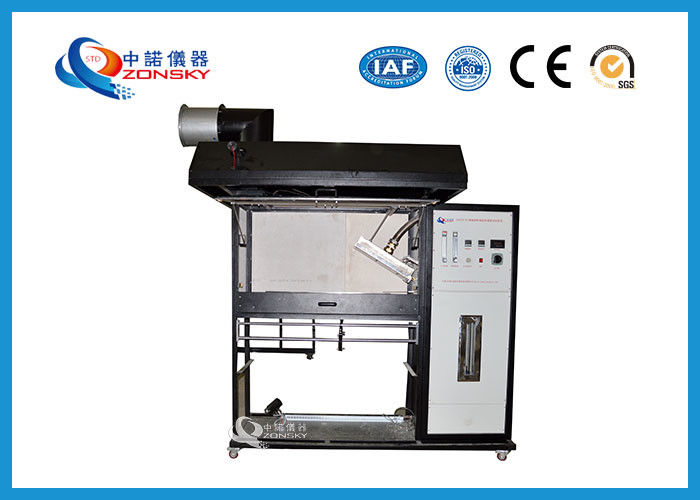

Experimental Device Of Micro Control Paving Material Radiation Heat Flux

1. Description

The ground material was ignited by a small flame and placed horizontally and exposed to an inclined thermal radiation field. It is applicable to all kinds of paving materials. For example, textile carpet, cork board, wood board, rubber sheet and plastic floor and floor spraying materials. GBT11785-2010 "determination of burning properties of paving materials; radiant heat source method"; ISO9239-1:2002 burning properties of paving materials Part I: Determination of combustion performance by radiant heat source method.

2. Performance Parameters

(1) The measurement range of heat flux meter is (0-100) Kw/m2.

(2) Ignition system: high voltage electronic ignition.

(3) Automatically extinguish the torch after the test time.

(4) The radiant heat source plate has porous fireproof plates and > 1100 degree of heat resistance.

(5) The accuracy of the thermal radiation thermometer is 0 - 900 ℃.

(6) The supply of radiation gas flow and air flow range can be adjusted.

(7) Ignition combustion torch outside diameter 10 mm SUS304 stainless steel material spray.

(8) Temperature of flue and box: K value armored thermocouple, precision 1 ℃.

(9) Adopting a strong exhaust system, the machine is equipped with a strong frequency conversion fan, which can accurately control the flow of wind speed in the box.

(10) The use of water cooling can effectively protect the life of the radiation flux meter.

(11) Adopt computer control system: Windows XP operation system.

(12) Power: 500W AC 220V / 50HZ

(13) Gas source: calorific value of 83 MJ/m3, using propane and compressed air.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.

Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
