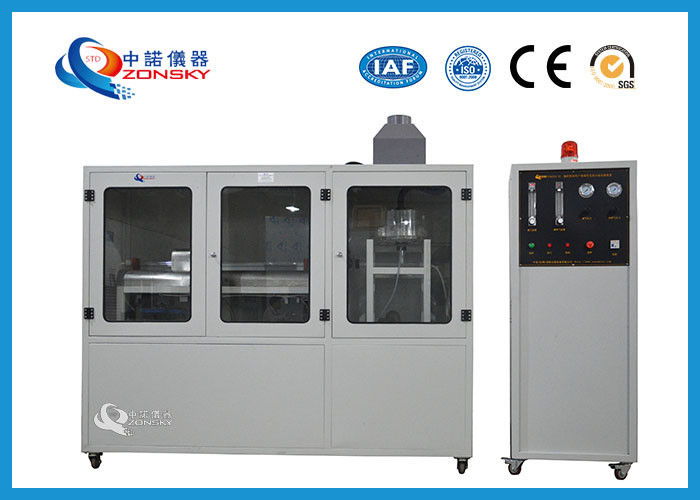

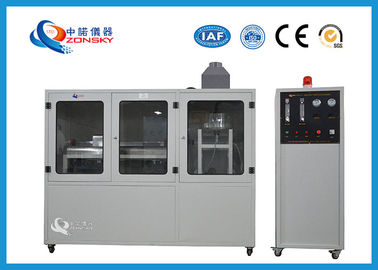

Stainless Steel Flammability Testing Equipment For Smoke Toxicity Classification

Micro-controlled Material Smoke Toxicity Classification Tester / Test Machine

1. Scope of Application

Test equipment for toxic risk classification of flue gases suitable for stable smoke production.

GB standard is used to test the toxicity grade of smoke produced by smoke in mice.

The ISO standard uses gas analyzers to determine the toxic risk classification of smoke produced by materials. Gas analyzer is another option.

This test machine ZONSKY company with the "Ministry of Public Security, Sichuan Fire Research Institute of Science and Technology" joint research and development, unique world-leading technology.

2. Standards

Compliance with GB/T 20285-2006 "Classification of Toxicity Risk of Smoke Producing Materials", ISO 19700-2006 "Control led Equivalence Ratio Method for the Determination of Hazardous Components of Fire Effluents"

3. Technical Parameters

3.1 Testing device consists of annular furnace, quartz tube, quartz boat, flue gas collection and distribution module, temperature control system, furnace displacement system, air supply system.

3.2 Supply voltage: AC 220V ± 10%, 50HZ

3.3 The current ≤ 10A

3.4 Maximum power usage: 1.5 KW, heating power: 800 - 1000 W

3.5 Temperature control range: 300 - 1000 ℃

3.6 Control accuracy: static ± 1 ℃ (maintenance time greater than 2min).

3.7 Air flow: 0 - 20 L/min adjustable.

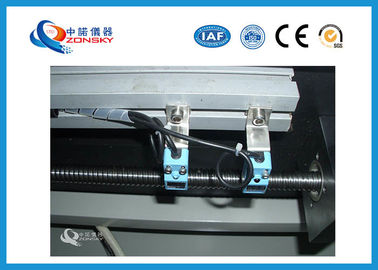

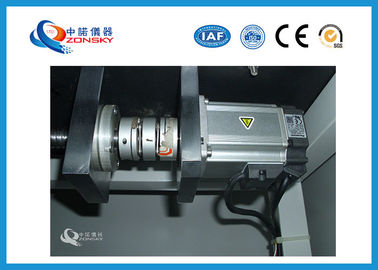

3.8 Annular furnace displacement rate: (10 ± 0.1) mm/min, movable distance≥600mm, and forward displacement rate can be adjusted. The displacement velocity is 50mm/min.

3.9 Quartz tube: the use of a jade tube, resistant to 1600 degrees high temperature, easy to remove and easy to clean, heat conduction ability.

3.10 Flue gas collection and distribution system: it can quickly mix carrier gas and dilution gas.

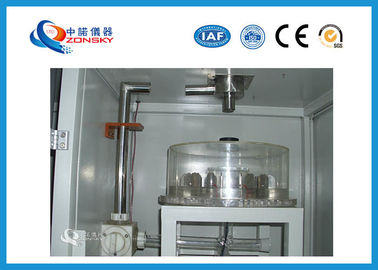

3.11 Gas Channel Switching: Conveniently and quickly accomplish the switching between poison box, flue gas collection box and exhaust gas

4. Main Features

4.1 Adopting 16-bit high-precision board plus microcomputer control, it has the advantages of reasonable structure, stable performance and simple operation.

4.2 WINDOWS XP operation interface, LabVIEW style, perfect security mechanism. During the test, the measured results are displayed in real time and the perfect curves are drawn dynamically. The data can be stored, read and printed out permanently, and the report forms can be printed directly.

4.3 Computer: one set, software: one set

4.4 Calibration of heating temperature of annular furnace: comparison chart showing time, temperature curve and actual measured temperature.

4.5 The smoke concentration and smoke production rate of the material are automatically calculated after setting.

4.6 Turn the chart of the angular velocity of the cage in real time.

4.7 The operation time of annular furnace is set arbitrarily.

4.8 With manual and automatic ring furnace fast forward and retreat function.

4.9 Our company is jointly developed with the Sichuan Fire Protection Research Institute of the Ministry of public security, and sees the development agreement agreement.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.

Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
