Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment

China Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment supplier
Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment supplier Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment supplier Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment supplier Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment supplier

Large Image :  Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6290

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Detailed Product Description
Material: Stainless Steel Standards: 16CFR 1611-2008
Combustion Chamber: 310(W) X 500(H) X 350(L) MM Igniter: High Pressure Automatic Ignition
Dimension: L350 X W610 X H515 MM Power: AC 220V, 50 HZ
High Light:

flammability test apparatus

,

flammability testing labs

Stainless Steel Flame Retardant Tester For Vinyl Plastic Products





1. Description

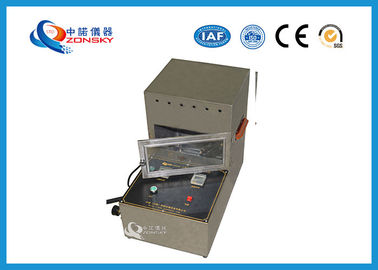

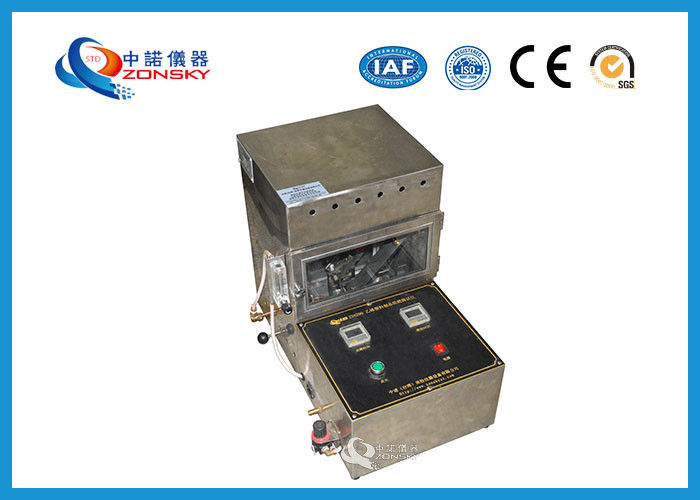

ZY6290 flame retardancy tester for vinyl products is suitable for testing the combustion performance of vinyl plastics products. Its design, manufacture and inspection are strictly in accordance with the 16CFR 1611-2008 Standard for the flammability of vinyl plastic ficm of the Consumer Goods Commission. It has the characteristics of small size, beautiful appearance, reasonable structure, simple operation and accurate testing.





2. Standards



16CFR 1611-2008





3. Main Technical Parameters



(1) Combustion chamber: in line with CFR1611.4 (a) (3) requirements.



(2) Combustion chamber dimensions: wide 310 mm, high 500 mm, long 350 mm



(3) Equipment material: 304# stainless steel material



(4) The top and sides of the combustion chamber are respectively opened with 6 air holes of 12.7 mm in diameter. The front of the chamber is equipped with a glass observation window.

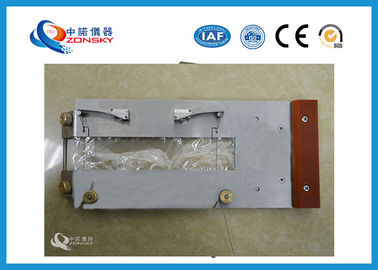

(5) Specimen Fixture: 2, made of high quality stainless steel plate with thickness of 2.0 mm, 125 mm wide and 280 mm long. The other end is made of insulating material, and the micro-switch is installed to touch the shrapnel, which meets the requirements of CFR1611.4 (a) (1).



(6) Burner: conform to CFR1611.4 (a) (1) requirement, No. 22 needle.



(7) Igniter: high pressure automatic ignition.



(8) Timer: In accordance with CFR 1611.4 (a) (4) requirements, 0-99.99 s arbitrary settings, resolution of 0.01 s, accuracy of 0.1 s.



(9) Equipment size: L350 * W610 * H515 mm



(10) Work power supply: AC 220V, 50 HZ





4. Matters Needing Attention



(1) The equipment resettlement office must have a single-phase 220V AC power supply for use.



(2) The equipment must be installed on a stable desktop and the environment is dry.



(3) During the use of the equipment, it must be grounded reliably to avoid electric shock.



(4) When the equipment is connected with the gas, it must pay attention to the airtightness of the gas pipe, in order to prevent the leakage of gas and the existence of security risks.



(5) During the test, do not touch the sample directly with hands to prevent scalding.



(6) After the test is completed, we must turn off the power and gas sources in time to avoid wasting resources.



(7) After each test, clean the test site in time and keep the equipment clean.



(8) Regularly spray rust preventive oil on the surface of the equipment to extend the service life of the equipment.



Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing EquipmentVinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment



Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment

Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment

Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment

Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment

Vinyl Material / Ethylene Plastic Flame Retardant Tester / Testing Equipment



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
