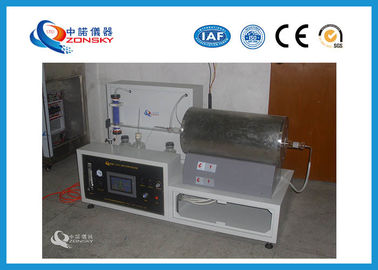

IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment

China IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment supplier
IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment supplier IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment supplier IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment supplier

Large Image :  IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6192-ZN

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Detailed Product Description
Surface Dealing: Baking Finish Standards: IEC 60754
Sampling: 500 MG ~ 1000 MG Dimension: L1700 * W600 * H800 MM
Combustion Boat: 80(L) X 25(W) X 10(D) MM Power: 6.5 KW
High Light:

flammability test apparatus

,

flammability testing labs

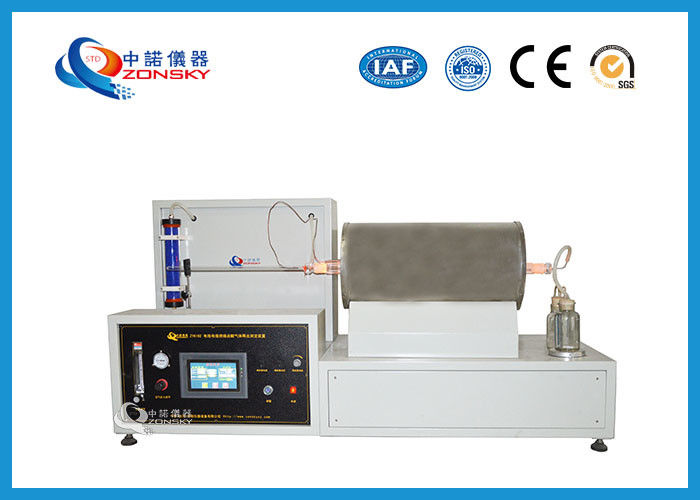

IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment





1. Description



ZY6192 type wire and cable combustion halogen acid gas measuring device is used to determine the total halogen acid gas of low halogen and halogen-free flame retardant cable and to measure the acidity of the gas by measuring the PH value and conductivity. Its design conforms to GB/T17650.1-1998, GB/T17650.2-1998 and IEC60754.1-1998, IEC60754.2-1991 standards, and also meets GB/T19666-2005 "flame retardant" The provisions of Table 6 of the Standard and General Rules for Refractory Wires and Cables and the requirements of Articles 6.3.4 of GA306.1-2007, 6.3.4 of GA306.2-2007, 9.10 and 9.11 of UL2556-2007. The equipment is accurate in testing, reasonable in structure and simple in operation. It is convenient for wire and cable manufacturers, colleges and universities, commodity inspection departments and scientific research units.





2. Standards



GB/T17650.1-1998, GB/T17650.2-1998 and IEC60754.1-1998, IEC60754.2-1991, UL2556-2007





3. Main Technical Parameters



(1) Tube-shaped furnace: the effective length of heating chamber and the diameter of tube 600 x Ф50 mm, equipped with an adjustable electric heating system, its heating power is 6 KW (AC 220V).



(2) Combustion tube: the material is quartz glass, the inner diameter is 36 mm, the length at the inlet side of the tube furnace is 60 mm ~ 200 mm, the length at the outlet side is 60 mm ~ 100 mm, leaving a gap for heating expansion.



(3) Combustion boat: the material is fused quartz tube, 80 mm long, 25 mm wide and deep 10 mm.



(4) Gas collection: Two bottles are used, one of which is equipped with a magnetic stirrer and contains 220 ml sodium hydroxide solution.



(5) The gas supply system:



Air flow meter: 50 ml ~ 500 ml (adjustable)



(6) Sampling: 500 mg ~ 1000 mg



(7) Determination of halogen acid content:



A. Analytical balance: accuracy is 0.1 mg



B. Digital PH meter: the accuracy is 0.02 PH.



C. Conductivity meter: the measuring range is (0 ~ 1 * 105) S/cm.



(8) Power supply: AC220V, 50HZ; total power is 6.5 KW



(9) Size: L1700 * W600 * H800 mm



IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing EquipmentIEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing EquipmentIEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment



IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment

IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment

IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment

IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment

IEC 60754 Intelligent Halogen Acid Gas Release Test Apparatus / Testing Equipment



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
