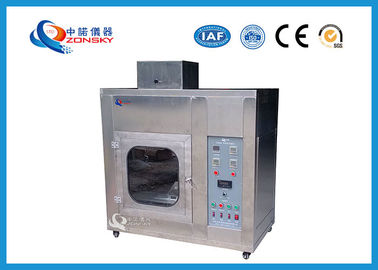

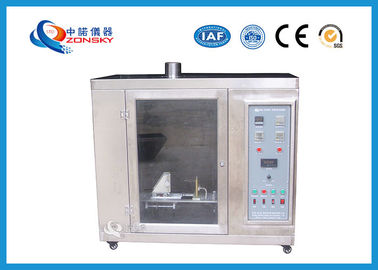

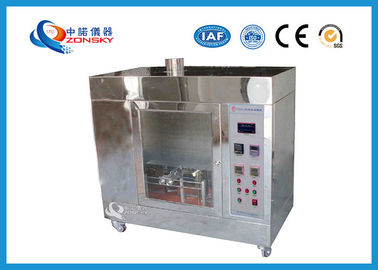

120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM

China 120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM supplier
120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM supplier 120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM supplier 120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM supplier 120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM supplier

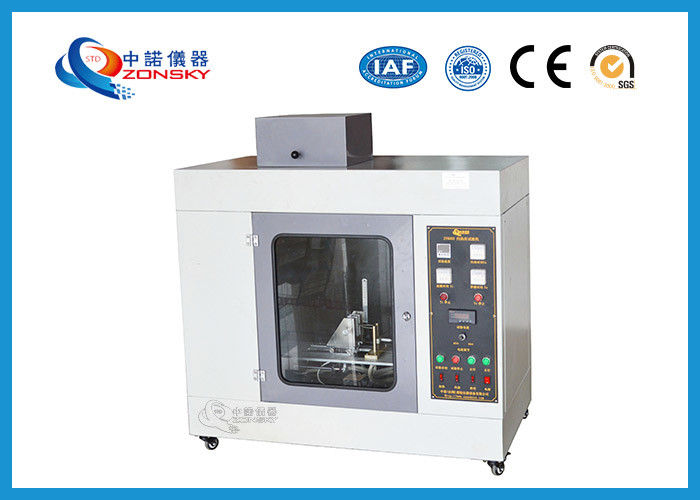

Large Image :  120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6055

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Detailed Product Description
Material: Stainless Steel Standards: IEC 60695
Inside Capacity: 950 * 600 * 900 MM Outline Size: 1200(L) X 600(W) X 1080(H) MM
Current: 120 ~ 150 A Penetration Depth: At Least 7 MM
High Light:

flammability test chamber

,

flammability test apparatus

IEC 60695 Stainless Steel Glow Wire Test Chamber / Testing Equipment





1. Application



Insulating materials or other solid combustible materials that are prone to flame spread inside the equipment may be ignited by a hot wire or a burning element. Under certain conditions, such as the fault current flowing through the wire, component overload and bad contact, some components will reach a certain temperature and cause the nearby parts to ignite.



This testing machine is used to evaluate the ignition risk of thermal stress caused by heat source such as burning element or overload resistance in a short time. Applicable to electrical and electronic equipment and its components, components, but also for solid electrical insulation materials or other solid combustible materials.





2. Reference Standard



GB/T5169.10, IEC60695, UL746A





3. Test Principle



Heating wire test using flameless ignition source (Heating wire is a standard resistance wire ring) It uses electric heating to a specified temperature, and then under test conditions, makes the heating wire touch the tested sample.



(1) Inside capacity: 0.5 m3, width * depth * height: 950 * 600 * 900 (mm)



(2) Outline size: 1200 (long) x 600 (wide) x 1080 (high) mm



(3) Hot wire: made of nickel / chromium with a diameter of 4mm.



(4) Thermocouple: 0.5 mm diameter armored filament thermocouple, which can withstand high temperatures of 1050℃.



(5) Heating current: when the temperature is 960℃, the current is between 120 ~ 150 A.



(6) The force applied to the test is 0.8 ~ 1.2 N, and the penetration depth is at least 7 mm.



(7) Timer: ignition duration (Ti) and flame extinction time (Te).



Timer range: 0 ~ 99.99 s.



(8) Outer box material: stainless steel



120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM



120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM

120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM

120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM

120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM

120 ~ 150 A Glow Wire Test Apparatus IEC 60695 Standards 1200x600x1080 MM



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
