38 MM Flame Height Flammability Testing Equipment For Automobile Interior Material

ASTM D5132 Automobile Interior Material Flammability Testing Equipment / Test Chamber

1. Application

Designed and manufactured according to relevant standards, the tester is suitable for identifying automotive interior decorative materials (including single or laminated composite materials used in automotive interior components), such as seat cushions, seat backs, seat covers, seat belts, headrest, armrests, and activities. Type folding roof, all decorative liners, dashboards, sundries, indoor goods racks, or rear window sill panels, curtains, floor covers... Evaluation of horizontal combustion characteristics.

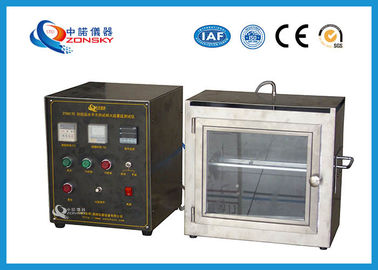

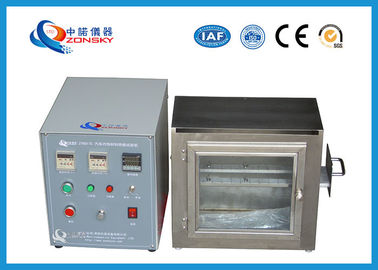

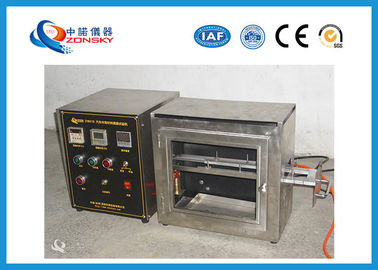

This test machine is composed of two parts: "automobile interior material combustion chamber" and "control box".

The burning box is made of stainless steel with beautiful appearance, corrosion resistance, easy cleaning, high automation of control system, convenient observation and record, stable and reliable use.

2. Standards

AGB8410 - 2006, ISO379, ASTM D5132, TL1010, GM6090M, DIN7520, GM9070P, FMVSS 302, JISD 1201, JASO M403, ISO 3795

3. Main Technical Parameters

(1) Work power supply: AC220V, 50HZ

(2) Combustion chamber size (mm): L420 * W205 * H370

(3) Control box size (mm): L293 * W315 * H368

(4) Sample jig: This machine has 2 sets of U jig. One set of sample fixture is used for standard sample preparation (100 mm), the other set is used for non-standard sample preparation (< 80mm).

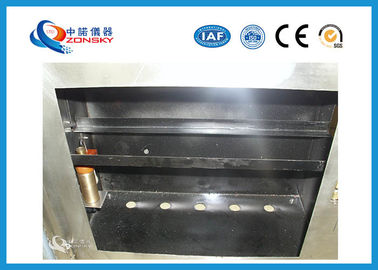

(5) There are 10 ventilation holes of 19 mm in diameter at the bottom of the combustor, and there are 13 mm wide ventilation slots around the wall near the top.

(6) Flame / burning time: 0~99.99 s/min/h set at random.

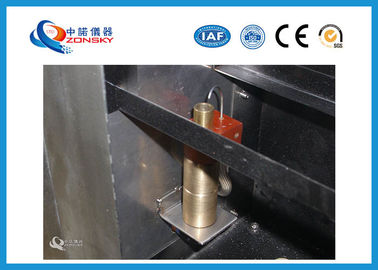

(7) Burning lamp: nozzle with inner diameter of 9.5mm, burning angle is 90℃.

(8) Gas source: high purity liquefied gas (customer owned)

(9) Flame height: 38 mm

(10) Metal comb: length 110 mm, each 25 mm has 7 ~ 8 round teeth.

(11) Collection plate: material is stainless steel, size: L336 * W85 * H12.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.

Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
