Payment & Shipping Terms:
|Material:||Stainless Steel Plate (SUS304)||Warranty Period:||12 Months|
|Accessories:||Imported From Western||Refrigerant:||R-404/R-23|
|Compressor:||France Taikang||Controller:||P.I.D MODE|
thermal shock test machine,
thermal cycle test chamber

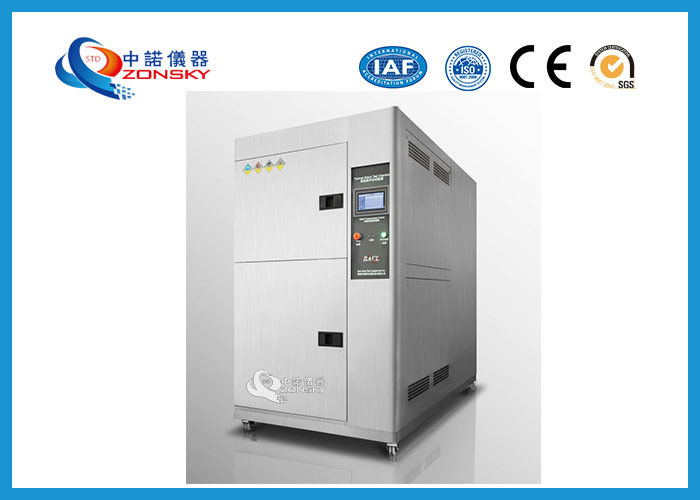

Environment Tester / IEC60068 Thermal Shock Test Chamber
1. Principles and methods
It uses the low temperature and high temperature storage hot trough, according to the movement need, uses the cylinder valve to switch the cold and hot air, thus achieves the fast temperature impact effect, balances the temperature control system (BTC) + the special design supply air circulation system, controls the SSR by the P.I.D. method, causes the heating amount of the system to be equal to the heat loss, therefore makes it long-term stable use.
2. Main Parameters
1. Performance: wind cooling type at room temperature ±25℃, no load.
(1) Impact temperature range: - 40 ~ 150 ℃
(2) Temperature setting range of high temperature cell: + 60℃ ~ + 200℃
The temperature rise time of the high temperature tank is about 35 minutes from RT (room temperature) to + 200 degrees ℃ (room temperature + 10 ~ + 30℃).
(3) The temperature setting range of cryogenic tank is from - 60 ℃ to - 10 ℃.
The cooling time of the cryogenic tank is from RT (room temperature) to -60 ℃, which takes about 90 min (room temperature + 10 ℃ ~ + 30 ℃).
(4) Laboratory temperature: - 40 ℃ - 100 ℃
(5) Temperature fluctuation: ±1 ℃.
(6) Temperature uniformity: ±2 ℃.
(7) Shock recovery time: - 40℃ ~ +100℃ takes about 3 minutes (no load), (high and low temperature shock isothermal time is more than 30 minutes each).
A: Internal dimensions: W500 * H300 * D400 mm
B: External dimensions (approx.): W140 x 180 x 170 (actual size).
(1) Inner box material: stainless steel plate (SUS#304)
(2) Outer box material: stainless steel plate (SUS#304)
(3) Heat preservation material: high temperature trough: aluminum silicate insulation cotton.
Cryogenic tank: high density PU foaming
(4) Heater: finned radiator tube type stainless steel electric heater.
A: High temperature tank 4.5 KW.
B: Cryogenic tank 1.5 KW.
(5) Air supply circulation system
A. Motor 1HP * 2.
B. Stainless steel lengthening axle center
C. Multi leaf fan (SIROCCO FAN)
E. Specially designed fan forced air supply circulation system
(6) Box door: test box single door, left open.
A. Embedded flat handle.
B. Rear button: SUS#304.
C. Silicone foam adhesive strip.
(7) Refrigeration system:
A. Compressor: fully enclosed high efficiency cascade compressor (France Taikang).
B. Refrigerant: environmental friendly refrigerant R-404/R-23.
C. Condenser: air-cooled shell and tube condenser. Evaporator: finned multistage automatic load capacity adjustment.
D. Accessories: desiccant, oil separator, refrigerant flow window, repair cut, high voltage protection switch.
E. Expansion system: capacity controlled refrigeration system.
G. Refrigeration accessories: expansion valve (Danish "DANFOSS"), solenoid valve (Japan); filter (Danish "DANFOSS"); pressure controller (Danish "DANFOSS"); cut-off valve (Italian CASTEL); oil pressure controller (British and American RANCO); shock hose (American PACKLESS); oil separator (European and American ALCO) and other systems All cold fittings are imported.
(8) Impulse Temperature Programmable Controller: The original imported LCD touch-controlled translucent screen direct button-type controller, Chinese and English to express a 7-inch graphics wide perspective, high contrast with adjustable backlight function of large LCD display controller.
A. Controller Specifications:
Accuracy: ±0.1 C + 1digit
It has upper and lower limit standby and alarm function.
Temperature input signal type T.
P.I.D control parameter setting, P.I.D automatic calculus.
B. Screen Display Function:
The screen directly touches options, including program settings, curve display, historical data, manual operation, automatic operation, auxiliary settings, etc.
Display current execution status, temperature setting value, time setting value, remaining time, remaining cycle number
With a separate program editing screen, you can enter temperature, time and cycle times.
The program setting value is displayed in graphic curve, and has real-time display program curve execution function.
Display fault status and explain troubleshooting methods.
Temperature setting (SV) and actual (PV) values are displayed directly.
The screen can be adjusted backlight. The screen shows that the protection function can be timed, TIMER or manually turn off the settings.
C. Program Capacity and Control Functions
The program group can be used: the maximum 100 PATTEN (that is, 96 test specifications can be set and stored separately).
Repeatable execution command: up to 9999 times.
SEGMENTS time set 0 to 530Hour59Min.
With the power off program memory, after restarting automatically start and continue to perform the program function.
During program execution, graphic curves can be displayed in real time.
It has the function of appointment startup and shutdown.
Date adjustment function.
(9) Main Electrical Components
Power button switch: Taiwan.
AC contactor: Fuji, Japan.
Thermal relay: Fuji, Japan.
AC relay: CHINT.
Time relay: Taiwan.
Impact temperature programmable controller: original imported.
No fuse master switch: Taiwan.
Solid state relay: American Express.
Button switch: Taiwan.
Dry burning Protector: Korea.
(10) Safety Protection Device
PHASE protection device.
Compressor overheat protection switch.
Compressor high voltage protection switch.
Compressor over current protection switch.
No overload protection for fuse switch.
The overload protection of blower motor.
Heater short circuit and overload protection device.
Line fuse and full sheath terminal.
(11) control panel:
Impact temperature programmable controller (original imported).
Power button switch one (Taiwan).
(12) Partition: two pieces.
(13) Surrounding environment:
Temperature range: 0℃ ~ + 25℃.
Performance guarantee range: + 5℃ ~ + 25℃ (cooling time and minimum temperature reference 1~6).
1. Quality assurance, a copy of delivery.
2. Order specification, provide a copy when ordering.
3. Provide a copy of delivery instructions.
(15) Items other than Valuation:
1. Preparation for setting up sites.
2. Input side electrical equipment
3. Input side electrical wiring project
4. Natural drainage piping works
5. Drainage equipment
(16) Requirements for equipment: machine power
A. Power: AC3 11KW 380V 50/60HZ
Voltage change allowable value: ±10%.
B. Maximum load capacity: 25 KVA
C. Maximum current: 40 A
