Programmable Thermal Shock Equipment Air Cooling Type At Room Temperature +25 C

China Programmable Thermal Shock Equipment Air Cooling Type At Room Temperature +25 C supplier

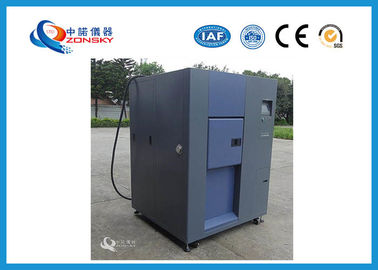

Large Image :  Programmable Thermal Shock Equipment Air Cooling Type At Room Temperature +25 C

Product Details:

Place of Origin: DONGGUAN, CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6046B-ZN3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set / Month
Contact Now
Detailed Product Description
Material: Stainless Steel Plate (SUS304) Warranty Period: 12 Months
Accessories: Imported From Western Refrigerant: R-404/R-23
Compressor: France Taikang Controller: P.I.D MODE

Programmable Thermal Shock Testing Equipment / Test Chamber





1. Principles and methods



It uses the low temperature and high temperature storage hot trough, according to the movement need, uses the cylinder valve to switch the cold and hot air, thus achieves the fast temperature impact effect, balances the temperature control system (BTC) + the special design supply air circulation system, controls the SSR by the P.I.D. method, causes the heating amount of the system to be equal to the heat loss, therefore makes it long-term stable use.





2. Main technical parameters



2.1 Performance: air cooling type at room temperature + 25 C, no load.



 Impact temperature range  - 40℃ ~ 150℃
 Temperature setting range of high temperature tank  60℃ ~  200℃
 Temperature rise time of the high temperature tank  35 min
 Interior temperature +10~+30℃
 Temperature setting range of cryogenic tank -60℃~-10℃ (takes about 90 min)
 Interior temperature +10~+30℃



2.2 Laboratory temperature: -40℃~150℃



2.3 Temperature fluctuation: ±1.0℃



2.4 Temperature uniformity: ±2.0℃



2.5 Shock recovery time: - 40 ~ +150 C, about 5 min (no load),

      High and low temperature shock constant temperature time is more than 30 min each.



2.6 Heat preservation material: High temperature trough: aluminum silicate insulation cotton.

                                                  Cryogenic tank: high density PU foaming



2.7 Heater: finned radiant tubular stainless steel electric heater.



 High temperature tank  4.5 KW
 Cryogenic tank  1.5 KW
 Compressor  Fully enclosed high efficiency cascade compressor (France Taikang)
 Refrigerant  Environmental friendly refrigerant R-404/R-23
 Condenser  Air-cooled shell and tube condenser
 Evaporator  Finned multistage automatic load capacity adjustment
 Accessories  Desiccant, oil separator, refrigerant flow window, repair valve, high  voltage protection switch
 Expansion system  Capacity controlled refrigeration system
 Refrigeration accessories  Expansion valve (Danish "DANFOSS"), solenoid valve (Japan), filter (Danish "DANFOSS"), pressure controller (Danish "DANFOSS"), cut-off valve (Italian CASTEL), oil pressure controller (British and American RANCO), shock hose (American PACKLESS), oil separator (European and American ALCO) and other systems All cold fittings are imported.



2.9 Impact Temperature Programmable Controller: The original imported LCD touch-controlled translucent screen direct button-type controller, in Chinese and English, shows a wide perspective of 7 inch graphics, high contrast with adjustable backlight function of large LCD display controller.



2.10 Structure: A: Internal dimension: W500 x H400 x D400mm

                         B: External dimension: (approx.)1600 x 1850 x 1600mm



2.11 Power supply: AC3¢11KW 380V 50/60HZ
