Insulation Rubber Abrasion Testing Equipment , Abrasion Testing Machine

China Insulation Rubber Abrasion Testing Equipment , Abrasion Testing Machine supplier

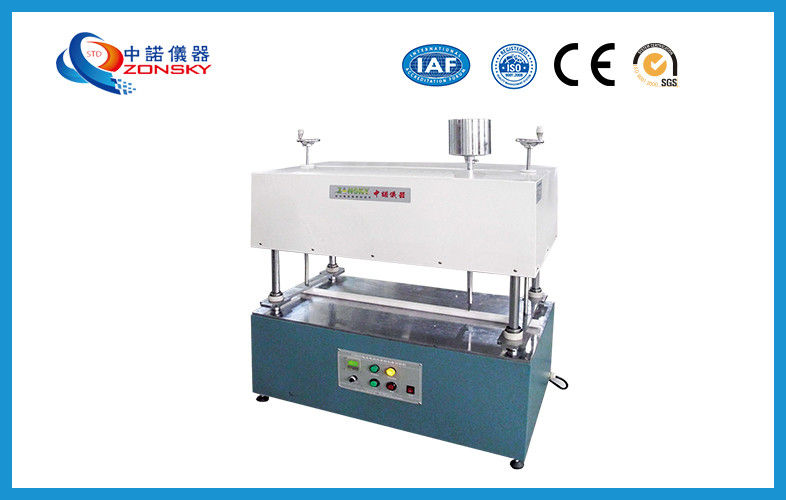

Large Image :  Insulation Rubber Abrasion Testing Equipment , Abrasion Testing Machine

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6040A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set / Month
Contact Now
Detailed Product Description
Material: Stainless Steel Warranty: 12 Months
Scratch Stroke: > 600mm Grinding Speed: 9 M/min ~ 18 M/min

Insulation Rubber Abrasion Tester



1. Application

Suitable for wire and cable outer diameter (30~110) mm plastic sheath abrasion resistance test.



2. Standards

Meet GB/T2951.28-1994 standard requirements.



3. Performance parameters

The curvature radius of the angle iron scraper is between 1~2mm.

Scratch stroke: > 600mm;

Grinding speed: 9M/min~18M/min;

The force of the external force of the wire is 65, 105, 155, 210, 270, 340, 420, 500N, 550N (weight);

Counter: 0~999 times arbitrary setting;

Specimen length: 1M

Power requirements: AC220V/50HZ
