70 W Abrasion Testing Equipment , Abrasive Wear Testing Machine High Reliability

Rubber Insulation Cable Abrasion Resistance Tester / Test Equipment

1. Description

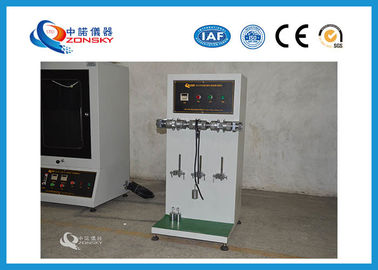

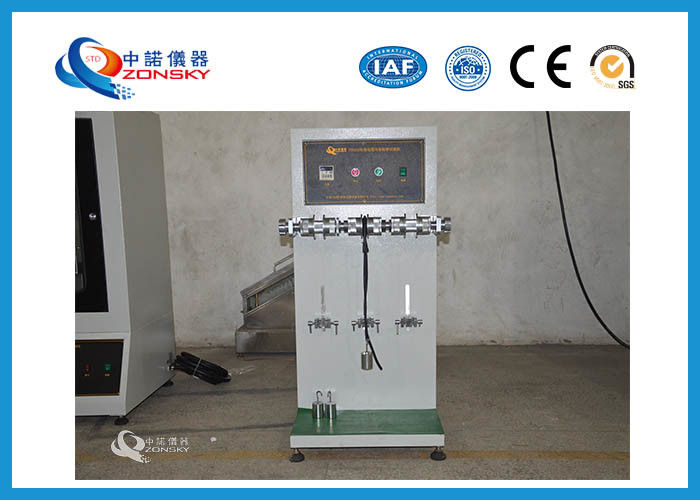

ZY6152 type wire and cable jacket wear tester is suitable for testing the wear resistance of rubber insulated cables with rated voltage 450V/750V and below. Its design, production, inspection and other links are strictly in accordance with GB5013.1, GB5013.2-97 test standards on wear resistance test requirements, with reasonable structure, beautiful appearance, accurate control, simple operation and other characteristics, for wire and cable manufacturers, colleges and universities, commodity inspection departments and scientific research units widely used.

2. Main Technical Parameters

(1) Working power supply: AC 220V, 50HZ; total power is 70W.

(2) Fixed axis diameter: Ф 40 ± 0.3mm.

(3) Test speed: one-way 40 ± 1 times / min.

(4) The test journey: 0.1M up and down movement.

(5) Test station: 3.

(6) Weight: 500 ± 5g three pieces.

(7) Counter: 0 ~ 999999 times can be preset.

(8) Equipment size: L500 mm * W440 mm * H1090 mm.

3 The Use of Equipment

(1) In accordance with the above-mentioned "Sample preparation and installation" regulations, three pairs of soft cable samples with a length of about 1 m are intercepted. Take one sample from each pair of specimens and circle it on the fixed wheel of the testing machine for two times. Adjust the distance between the two sides of the fixed wheel, so that each circle of specimens is closely aligned with each other. Tighten the fixing wheel to prevent the relative movement between the sample and the fixed rotation.

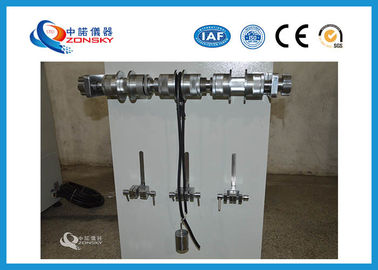

(2) Place another sample in the groove formed by the above-mentioned sample, attach a 500g weight at one end (as shown in Fig. 1 above), and clamp the other end on the sample fixture to move up and down (note: the distance between the top and the bottom is 100mm), the movement speed is about 40 times per minute. In the single group test, the middle work station is selected, and two positions are selected for two groups of tests.

(3) According to the label on the equipment, insert the correct power supply (AC 220V) and open the power switch on the control panel.

(4) According to the test requirements, the number of tests required on the "test times" counter is set.

(5) Press the "start" button, the sample clamp moves up and down, the test begins.

(6) When the number of tests reaches the set times, the tester automatically stops testing. (Note: In case of abnormal emergency during the test, please press the "stop" button immediately, suspend the test, check the fault of the equipment, and troubleshoot it.)

(7) After the test is finished, turn off the power switch and arrange the test equipment for the next use.
