High Efficiency Double Ended Grinding Machine Convenient Three Phase 380V 50HZ

China High Efficiency Double Ended Grinding Machine Convenient Three Phase 380V 50HZ supplier
High Efficiency Double Ended Grinding Machine Convenient Three Phase 380V 50HZ supplier High Efficiency Double Ended Grinding Machine Convenient Three Phase 380V 50HZ supplier High Efficiency Double Ended Grinding Machine Convenient Three Phase 380V 50HZ supplier

Large Image :  High Efficiency Double Ended Grinding Machine Convenient Three Phase 380V 50HZ

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6024A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set / Month
Detailed Product Description
Material: Stainless Steel Warranty: 12 Months
Grinding Wheel Speed: 2800 RPM / Min Work Power Supply: Three Phase 380V, 50HZ
Speed: 24m/s (15~25m/s) Diameter Of Grinding Wheel: 160 ± 2 MM
High Light:

abrasion testing machine

,

wear testing machine

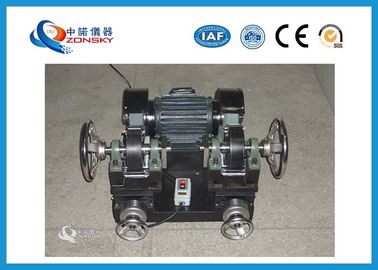

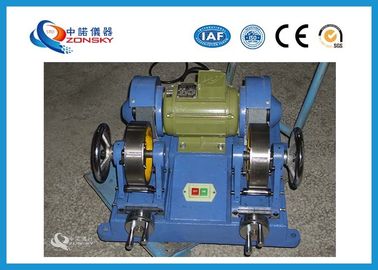

Double End Sample Smooth Grinding Machine / Double-Head Test Abrasive Grinder





1. Application



ZY6024 Double-head test abrasive grinder is one of the essential equipment for testing rubber quality. It is specially designed for rubber factories and research institutes to grind rubber test pieces to a certain thickness for other test equipment.



The planing machine is mainly composed of main parts such as seat feed trailing plate, working wheel, motor and grinding wheel. The ZY6024 grinding machine is equipped with a grinding wheel and a trailer on the left side, which forms two kinds of grinding wheels, coarse and fine, working simultaneously, and has the characteristics of dual-purpose. The product is convenient to use, save time, improve work efficiency, and is safe and reliable.





2. Technical Parameters



(1) Diameter of grinding wheel: 160 ± 2mm;



(2) Grinding wheel specifications: G260APRI 170X40X32 36;



G260APRI 170X40X32 80 granules;



(3) Grinding wheel linear speed: 24m/s (15~25m/s);



(4) Grinding wheel speed: 2800 RPM / min;



(5) Work power supply: three phase 380V, 50HZ.





3. Brief Description of Structure



The motor is located in the middle of the frame, and the two ends of the motor are equipped with coarse and fine grinding wheels. Film clamping mechanism and overrunning clutch (no reversal of working wheel) are mounted on the working wheel. The working wheel feeds the upper trawler. The handwheel is connected by a rotating shaft. The working face of the left and right working wheels is symmetrical and parallel to that of the coarse and fine grinding wheels. Rotate the feed handle and rotate the handwheel at uniform speed to achieve the thickness of the grinding film.





4. Usage



4.1 Turn on the power supply and start the motor. The direction of rotation of the grinding wheel should be in accordance with the direction indicated by the shield. If the opposite is true, change the direction of the motor immediately.



4.2 Hold the small handle on the side of the working wheel at the end of the rough grinding wheel, open the eccentric wheel, insert one end of the film into it, loosen the small handle, rotate the handwheel, and the film clings to the working wheel under the action of the movable roller.



4.3 Adjust the distance between the film and the grinding wheel according to the feed handle scale (0.02mm).



4.4 Start the motor and rotate the handwheel for rough grinding.



4.5 When grinding to a certain thickness, take out the film and place it at the end of the fine grinding wheel. Fine grinding to the required thickness by the above method.





5. Maintenance and Care



5.1 If it is found that the thickness of the test piece is uneven, check whether the plane of the grinding wheel is parallel.



5.2 If the grinding wheel is found to be out of order, the plane (diamond) should be corrected by cutting tool.



5.3 Regularly add sliding surface to the plank surface to maintain normal work.



5.4 Adjust the gap between the nut and the screw regularly.



5.5 The machine is installed in the environment without vibration and no corrosion.
