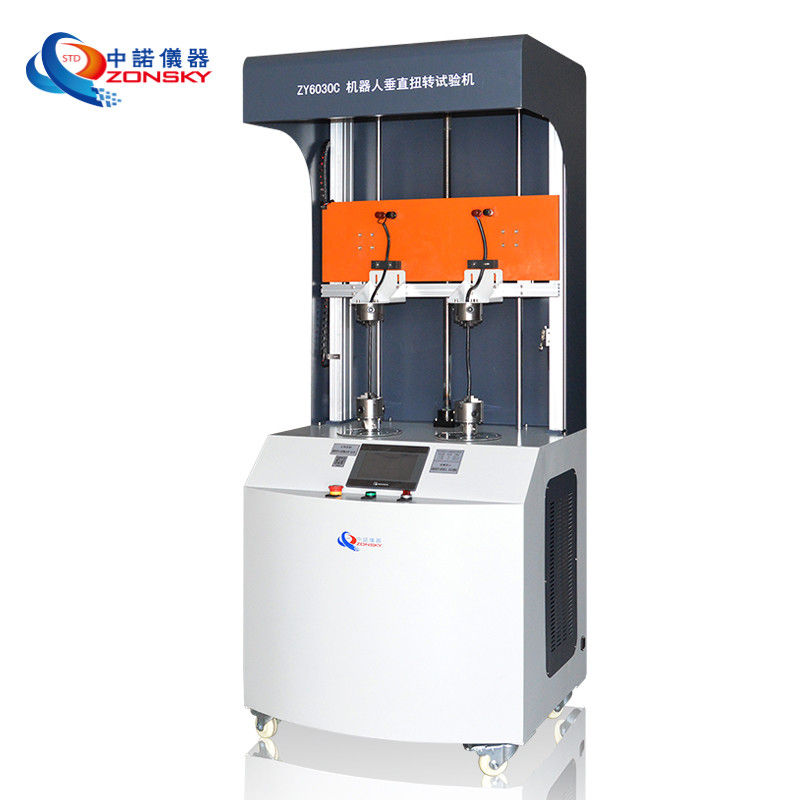

Two Stations Robot Cable Torsion Tester / Robot Cable Twisting Testing Equipment

Two Stations Robot Cable Torsion Tester / Robot Cable Twisting Testing Equipment

1. Application

Suitable for high flexible cable testing requirements such as TUV, VDE, UL, etc. The structure of the machine is a tandem 2-station, which is mainly used for the repeated torsion test of the longitudinal installation of the metal wire to detect the plastic deformation performance and the obvious defects of the metal wire in the repeated torsion test.

2. Standards

Comply with the standards of CRIA 0003.2-2016 "Industrial Robot Special Cable Part 2: Test Method" standard of China Robot Industry Alliance Standard.

Meets TUV Rheinland 2 PfG 2577/08.16 Appendix H standard requirements.

3. Parameters

(1) Test station: 2 stations

(2) Maximum diameter of sample: φ3~20mm

(3) Motor: Japan Matsushita servo motor

(4) Power supply: 220V, 50/60Hz 10A

(5) Control mode: Touch screen control

(6) Counting digits: 0-99999999 times

(7) Bending angle: ±180° digital setting

(8) The distance between the fixture and the torsion point: 50~500mm adjustable

(9) Turning speed of sample: 0~60 times/min is adjustable (Note: test cycle is composed of 4 steps)

(10) Machine material: Main part: 45# high-quality steel structure.

Power and transmission: Imported industrial synchronous belt and synchronous wheel.

Test bending cylinder: High quality PVC cylinder, wall thickness about 10mm

(11) Machine size: W1080 x D900 x H1430 mm

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.

Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
