Accurate 2KVA High Voltage Test Equipment For Various Electrical Appliances

UL 1581 High Voltage Test Bed / Test Apparatus

1. Description

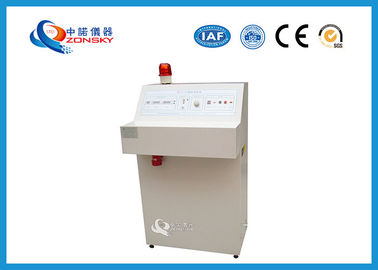

ZY6162-2KVA High Voltage Testing Platform is an advanced voltage withstanding test equipment designed according to the latest national power industry standards. It is used to test the insulation strength of various electrical appliances, electrical components and insulation materials under specified voltage, so as to check the insulation level of products, find the insulation defects of the tested products and measure them. The ability to overvoltage.

This equipment adopts the advanced technology of micro-computer with the times and the digital measurement and control means of combining hardware and software. Its excellent design and careful consideration carry out the design concept of "all for the user", which makes your use easy and handy.

2. Standards

It conforms to GB "Test Method for Electrical Performance of Wires and Cables - AC Voltage Test", IEC60060 "High Voltage Test Technology" and UL1581, UL62, VDE, CCC, JIS, CSA, KEMA test standards.

3. Main Technical Parameters

(1) Power supply: AC 220V ± 10%, 50Hz

(2) Rated power: 2 KVA

(3) Rated voltage: AC 50 KV

(4) Rated current: AC 40 mA

(5) Voltage resolution: 0.05 kV

(6) Current resolution: 0.1 mA

(7) Measurement accuracy: less than 1%

(8) Time range: 0 ~ 65535s

(9) Ambient temperature: 0 ~ 40 ℃

(10) Ambient humidity: R.H is less than 80% (no condensate)

(11) Altitude: less than 1000 m

4. Functional Characteristics

(1) Professional programmable voltage withstanding test device, micro-computer measurement and control, to ensure high precision, high reliability of various performance;

(2) Large screen LCD, full Chinese display and operation, showing the contents of visual and comprehensive, easy and simple operation.

(3) Comprehensive monitoring function, which can monitor and display input and output voltage and current simultaneously.

(4) Perfect protection, high voltage, voltage and current multiple protection.

(5) Zero start interlock, ground interlock, external safety interlock or infrared detector interlocking;

(6) Emergency stop button to prevent accidents.

(7) Full automatic or manual test mode can automatically boost, automatically timing and automatically return to zero.

(8) Set target voltage, protection current and withstand voltage at any time.

(9) Multilevel boost speed is set at random.

(10) Approaching voltage regulation mode. When the target voltage is close to the target, it will automatically adjust the voltage.

(11) Refusing to continue boosting when the rated voltage is reached.

(12) Automatically capture peak voltage and current for easy breakdown test.

(13) Over limit automatic protection, automatic return to zero, and sound and light alarm.

(14) The test results can be viewed and printed.

(15) Automatic fault diagnosis, easy to find and solve problems.
