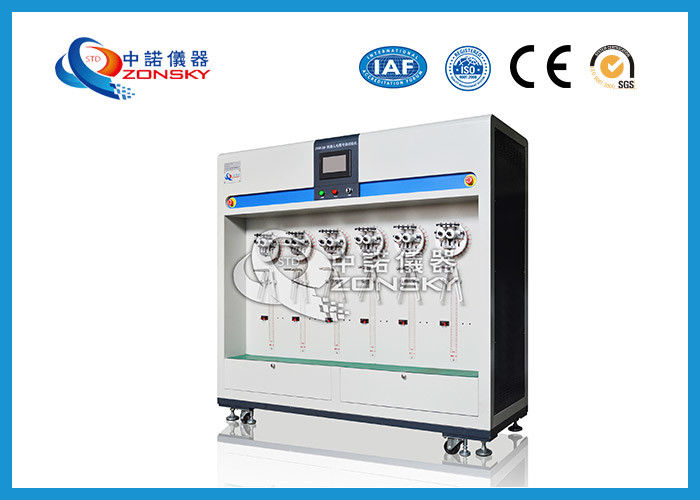

Robot Cable Bending Tester / Robot Cable Bending Fatigue Testing Machine

: Large Image : Robot Cable Bending Tester / Robot Cable Bending Fatigue Testing Machine

Product Details:

Place of Origin:	DONGUAN CHINA
Brand Name:	ZONSKY
Certification:	ISO9001:2008, CE, SGS, IAF
Model Number:	ZY6015D

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	15 Working Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5 Set / Month

Contact Now

Detailed Product Description

Standards:	CRIA 0003.2-2016	Material:	Stainless Steel
Warranty:	12 Months	Test Speed:	80 Times/minute
Type:	Fatigue Test	Power:	DC24V
High Light:	bending test apparatus , bend test machine

Robot Cable Bending Tester / Robot Cable Bending Fatigue Testing Machine

1. Application

ZY6015D Robot Cable Bending Testing Machine/90 Degree Bending Testing Machine is suitable for TUV, VDE, UL and other high flexible cable testing requirements. The machine structure is a five-station structure. It is mainly used for repeated bending tests of metal materials to detect the plastic deformation performance and defects of metal wires in repeated bending tests. CRIA 0003.2-2016 "Industrial Robot Cable Part II: Test Method", "PFG2577/08.16 Standard Requirements.

2. Standards

CRIA 0003.2-2016, PFG2577/08.16

3. Main Technical Parameters

(1) Work power supply: AC220V, 50HZ.

(2) Motor power: 0.75kw

(3) Test speed: 0-60 times per minute can be adjusted (Note: Test cycle consists of four steps, i.e. around 1800 round trips for one time).

(4) Spindle rotation: ± 90 degrees, from left end (starting point) to right end (end point) is 180 degrees.

(5) Counter: 0 ~ 99999999 times can be set arbitrarily.

(6) Equipment size: W1050 * D600 * H900 mm.
