|Standards:||ASTM D 2565||External Dimension:||1050 X 1050 X 1750 MM|
|Material:||Baking Finish||Warranty:||12 Months|
|Temperature Range:||0℃～80℃||Humidity Range:||30 ~ 98% R.H|

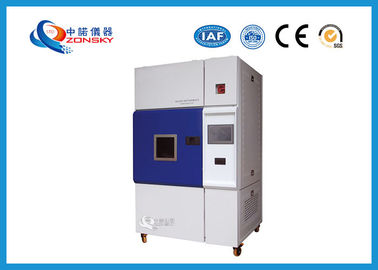

White Color Baking Finish Programmable Xenon Arc Test Chamber
Xenon lamp test chamber uses xenon arc lamp which can simulate all sunlight spectrum to reproduce destructive light wave in different environment. It can provide corresponding environment simulation and accelerated test for scientific research, product development and quality control. Xenon lamp test box can be used to select new materials, improve existing materials or evaluate the durability of materials after composition changes in the test, it can be a good simulation of different environmental conditions, materials exposed to sunlight changes. Meet the criteria: GB/T16585-1996, GB14522-93, GB/T16422.3-97, ASTM D2565.
GB/T16585-1996, GB14522-93, GB/T16422.3-97, ASTM D2565
Comply with GB/T16585-1996, GB14522-93, GB/T16422.3-97 and ASTM D2565 standards.
3. Product Features
All spectrum xenon lamp.
A variety of filtering systems are available.
Water spray function.
Relative humidity control.
The air temperature control system of the test chamber.
Irregular shape sample holder.
The original xenon arc lamp imported from the United States.
Installation is easy to use and basically does not require daily maintenance features.
The lifespan of the xenon arc lamp depends on the level of radiation illumination. Generally, the lifespan of the lamp is 1600 hours. Lamp replacement is convenient and quick, and long acting filters provide protection for maintaining the required spectrum.
|External dimension||W x D x H: 1050 x 1050 x 1750 mm|
|Internal dimension||W x D x H: 500 x 500 x 600 mm|
±2℃ (without illumination)
|Humidity range||30 ~ 98% R.H|
|Spectral wavelength||300nm ~ 800nm|
|Xenon lamp power||1.8KW|
|Power||About 4KW; 220V±10%, 50HZ|
