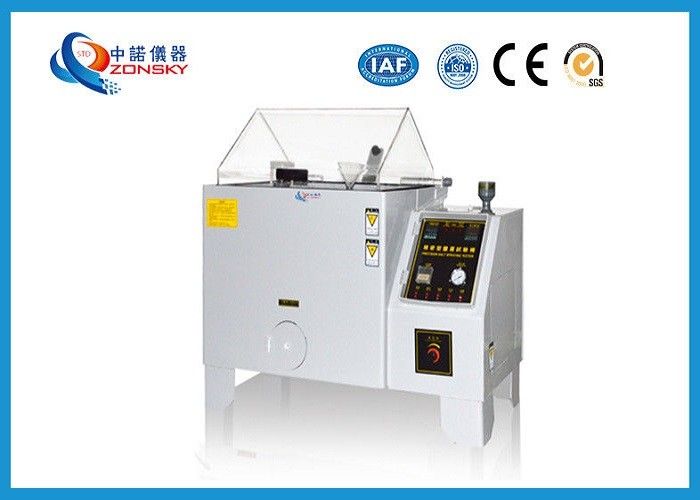

Durable Salt Spray Test Apparatus Double Overtemperature Protection ASTM Standards

Durable Salt Spray Tester Professional Manufacturer Salt Spray Testing Apparatus ASTM Standards

Decription:

Test the corrosion resistance of the material surface after painting, coating, electroplating and Yang treatment. The whole PVC board is made of advanced three-dimensional reinforcing technology with ring production, which has a strong structure and no deformation; double overtemperature protection, insufficient warning of water level to ensure safe use; imported temperature controller, digital display, PID control, high stable platinum temperature probe, error (+ 0.3%); test tank is heated directly by steam Type, heating speed is fast, shortening standby time. Conforms to ASTM G85-02 and GB/T2423.17 test standards.

Performance parameters:

Laboratory volume: 108 L, studio size: 600 * 450 * 400 mm

The temperature of the saturated air cylinder is 47 to 63 degrees.

Maximum capacity of test fluid: 15 L

External Dimensions: 1075 * 630 * 1185 Mm

Can be customized according to customer requirements.

Temperature range: Rt+5℃ ~ 55℃

Humidity range: 85 ~ 98%RH

Temperature uniformity: +/- 2℃

Temperature fluctuation: +/- 0.5℃

The temperature range of the saturated air cylinder is Rt+10 to 70℃.

Salt mist deposition: 1 ~ 2mL/80cm2. H

Spray mode: continuous / periodical selection

Spray pressure: 0.07-0.17MPa (adjustable)

Test time: 1~9999 H, M, S (adjustable)

Cycle time: 1~99 H, M, S (adjustable)

Sample rack: two layers, which can meet 15/30 tilt test.
