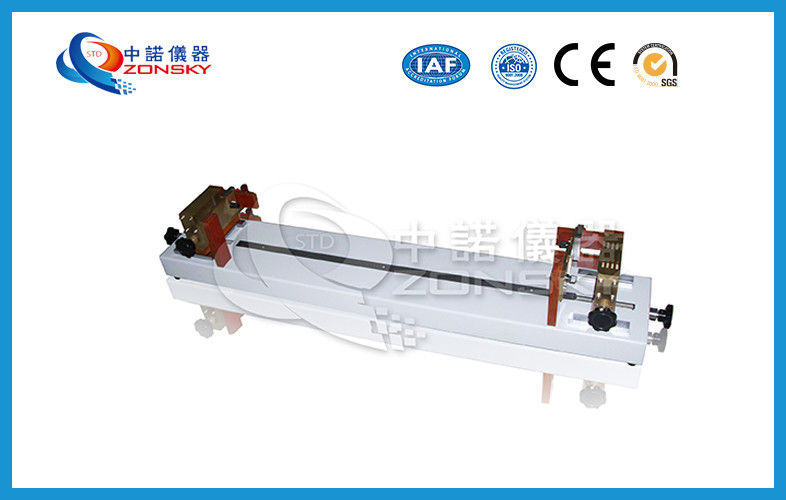

High Reliability Resistivity Testing Equipment , Conductor Resistivity Survey Equipment

: Large Image : High Reliability Resistivity Testing Equipment , Conductor Resistivity Survey Equipment

Product Details:

Place of Origin:	DONGGUAN CHINA
Brand Name:	ZONSKY
Certification:	ISO9001:2008, CE, SGS, IAF
Model Number:	ZY6001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10 Set / Month

Contact Now

Detailed Product Description

Measuring Traverse Length:	1 M	Diameter:	0.5 ~ 10 Mm
The Distance Between Current And Voltage Ends:	60 Mm	Feature:	High Reliability
High Light:	resistivity measurement equipment , resistivity survey equipment

Measuring Traverse Length:

1 M

Diameter:

0.5 ~ 10 Mm

The Distance Between Current And Voltage Ends:

60 Mm

Feature:

High Reliability

High Light:

resistivity measurement equipment

resistivity survey equipment

Conductor Resistance Tester Conductor Resistance Testing Machine IEC 60245-2, IEC60227, IEC60468

1) Description

The clamp has two sets of replaceable chucks and a pair of miniature terminals. The shape of the current end is right angle tiger mouth. It can make the current end in good contact with the sample, make the current distribute evenly in the tested wire core and reduce the influence of contact resistance on the measurement. The DC resistance of the conductors of circular, twisted and sectoral wires can also be measured with a connecting post for various enamelled wires of less than 0.1 M. It accords with GB308.2, GB3048.4, GB 5013, GB5023, IEC 60245-2, IEC60227, IEC60468.

2) Performance parameters

Measuring traverse length: 1 m

Diameter: 0.5 ~ 10 mm;

ZY6001A maximum diameter: 25 mm;

ZY6001B maximum diameter: 50 mm;

the distance between current and voltage ends is 60mm;

ZY6001A, ZY6001A/ZY6001B current and voltage terminal spacing adjustable.
