Baking Finish Plastic Smoke Density Chamber With ISO565 Certification

China Baking Finish Plastic Smoke Density Chamber With ISO565 Certification supplier
Baking Finish Plastic Smoke Density Chamber With ISO565 Certification supplier Baking Finish Plastic Smoke Density Chamber With ISO565 Certification supplier Baking Finish Plastic Smoke Density Chamber With ISO565 Certification supplier Baking Finish Plastic Smoke Density Chamber With ISO565 Certification supplier

Large Image :  Baking Finish Plastic Smoke Density Chamber With ISO565 Certification

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6166B-PC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Contact Now
Detailed Product Description
Surface Dealing: Baking Finish Standards: GB/T 8323.2-2008, ISO5659
Transmittance Resolution: 0.0001% Measurement Range: 0% ~ 100%
Room Temperature: 40 ℃ Dimension: 1822(L) X 860(W) X 1970(H) MM

Baking Finish Plastic Smoke Density Chamber With ISO565 Certification





1. Description

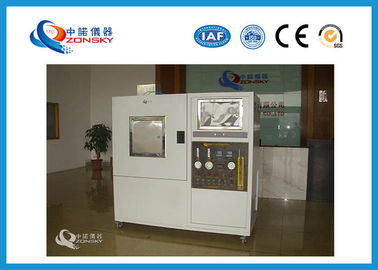

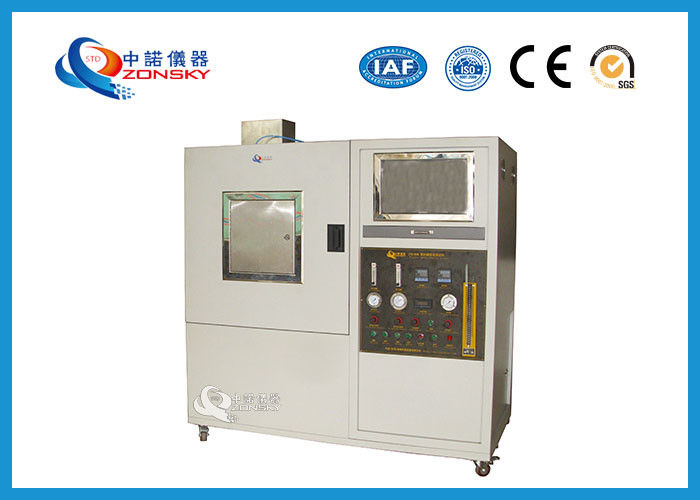

ZY6166B Plastic Smoke Density Measuring Instrument is a new type of smoke density measuring equipment developed according to the technical requirements stipulated in the National Standard GB/T8323.2-2008 "Plastic Smoke Generation-Part 2: Test Method for Measuring Smoke Density by Single Chamber Method". The instrument is suitable for measuring the specific optical density of the smoke produced during the combustion of plastics. The density of large specific light is the test result. It is used to assess the smoke performance of plastics under specified conditions.

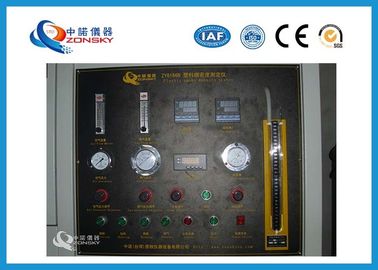

The whole machine is composed of closed test box, optical measurement system, radiation cone, combustion system, igniter, test box, bracket, thermometer and smoke density testing software. It has high technical content and stable performance. This instrument is suitable for testing all plastics and for evaluating other materials such as rubber, textile covers, painted surfaces, wood and other materials. It is widely used in the plastics industry and scientific research and testing units.





2. Standards



GB/T8323.2-2008, ISO5659





3. Main Technical Indicators and Working Conditions



(1) Transmittance resolution: 0.0001%



(2) Measurement range: 0 - 100%



(3) Measurement accuracy: ±3%



(4) Working voltage: AC220V, 50Hz



(5) Ambient temperature: room temperature 40℃



(6) Relative humidity: less than 85%



(7) Gas source: purity is at least 95%, propane and air mixed gas, the pressure is 170 Kpa



(8) Test mode



A. Flameless mode: the specimen is subjected to thermal radiation and does not produce flame.



B. Flaming mode: the specimen is subjected to the heat radiation and is also affected by the flame of the burner.



(9) Working environment: when the instrument is running, it should avoid direct light and no forced air flow.

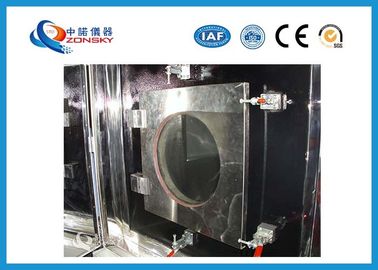

(10) Smoke box size: length 914±3mm, width 610±3mm, high 914±3mm.



(11) External dimensions: long 1822 mm, wide 860 mm, high 1970 mm



(12) Heating power: 2600 W; total power: 3000 W



Baking Finish Plastic Smoke Density Chamber With ISO565 CertificationBaking Finish Plastic Smoke Density Chamber With ISO565 CertificationBaking Finish Plastic Smoke Density Chamber With ISO565 Certification



Baking Finish Plastic Smoke Density Chamber With ISO565 Certification

Baking Finish Plastic Smoke Density Chamber With ISO565 Certification

Baking Finish Plastic Smoke Density Chamber With ISO565 Certification

Baking Finish Plastic Smoke Density Chamber With ISO565 Certification

Baking Finish Plastic Smoke Density Chamber With ISO565 Certification



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
