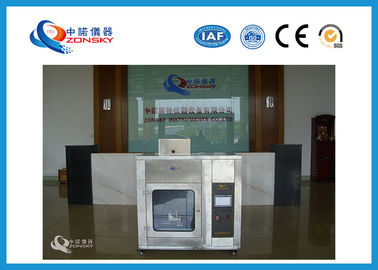

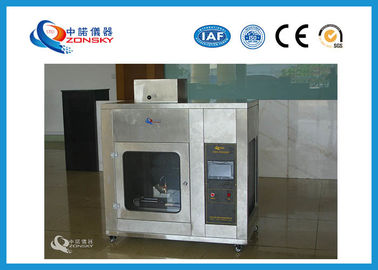

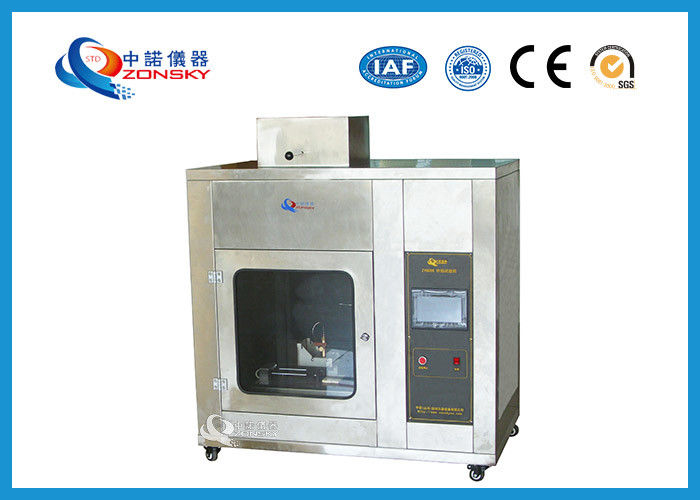

IEC 60695 Stainless Steel Needle Flame Testing Equipment / Pin Flame Test Chamber
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Surface Dealing: | Stainless Steel | Standards: | IEC 60695 |
|---|---|---|---|
| Check Time: | 23.5s ± 1.0s | Voltage: | AC 220V ± 10V / 50 HZ |
| Copper Block Diameter: | 4 MM (± 0.01 MM) | Flame Height: | 12 MM ± 1 MM |
| High Light: | flammability test chamber,flammability test apparatus |
||
IEC 60695 Stainless Steel Needle Flame Testing Equipment / Pin Flame Test Chamber
1. Application
This testing machine is suitable for the research, production and quality inspection departments of lighting, low-voltage electrical appliances, household appliances, machine tools, electrical machines, motors, power tools, electronic instruments, electrical instruments, information technology equipment, electrical business equipment, electrical connectors, accessories and other electronic equipment and its components, construction plastics or other solid combustible materials industry. The design meets the requirements of GB/T5169.5-2008 "Fire hazard test for electrical and electronic products Part 5 Test flame needle flame test method device, confirmation test method and guide" and other standards. It has the characteristics of reasonable structure, accurate control and simple operation.
2. Standards
GB/T5169.5-2008, IEC60695-11-5, GB4706.1-2005
3. Main Technical Parameters
(1) Needle shaped burner: outer diameter less than 0.9 mm, height at least 35 mm, pore size 0.5mm ± 0.1mm.
(2) Flame height: 12mm ± 1mm.
(3) Flame angle: 0 degree, 45 degree adjustable.
(4) Specification of temperature measuring copper block: diameter is 4 mm (± 0.01 mm), length is 6 mm (± 0.03 mm), weight is 0.58 (± 0.01 g), material is copper
(5) Check time: 23.5s ± 1.0s
(6) The temperature range of the flame temperature sensor is greater than or equal to 1050 ℃.
(7) Flame time: 5S, 10s, 20s, 30s, 60s, 120s; error is ±0.1s; digital display can be preset.
(8) Holding time: 1s ~ 999.9s (digital display, manual suspension to maintain digital display).
(9) Temperature gradient of gas flame: (100℃ ± 5℃) ~ (700℃ ± 3℃), the time required to increase the temperature from 100℃ to 700℃ is 23.5s.
(10) Imported K type armored thermocouple and stainless steel pipe with diameter of 0.5 mm diameter as sheath.
(11) The test chamber is more than 0.5 m3, the background is black, and the material is stainless steel.
The specific size of the test chamber is L1130 mm x W630 mm x H1305 mm.
(12) Working voltage: AC 220V ± 10V / 50 HZ
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: No, we don't provide the samples for testing.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.
Q: What is your terms of payment ?
A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
