SUS304 Bursting Strength Testing Machine For Leather / Corrugated Cardboard

China SUS304 Bursting Strength Testing Machine For Leather / Corrugated Cardboard supplier

Large Image :  SUS304 Bursting Strength Testing Machine For Leather / Corrugated Cardboard

Product Details:

Place of Origin: DONGGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6023

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set / Month
Detailed Product Description
Material: Stainless Steel Warranty: 12 Months
Induction Mode: Pressure Transducer Oil Pressure Speed: (170 ± 10) Ml/min
Low Pressure: 0 ~ 16 KG Squared Motors: AC 220V, 1/4HP
High Light:

crack testing machine

,

bursting strength testing machine

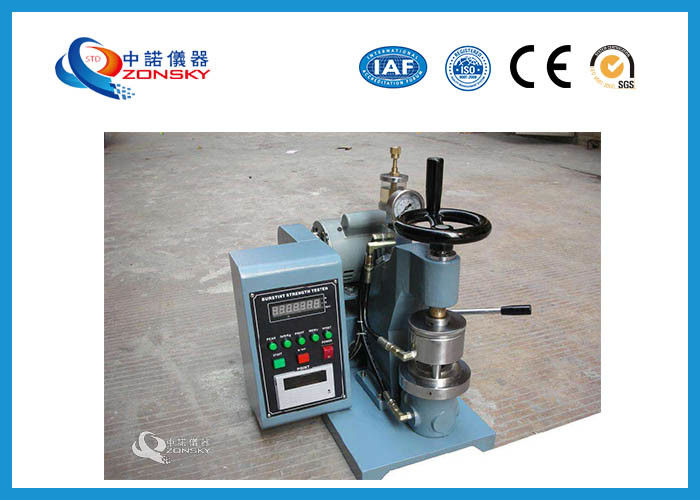

Bursting Strength Tester / Cracking Strength Tester





1. Application



It is suitable for the anti-cracking strength of cartons, leather and corrugated cardboard. It is an indispensable equipment to verify the quality of surface paper and stamen paper. Meet GB454-2002 standard requirements.





2. Performance parameters



(1) Induction mode: pressure transducer



(2) Display of rupture force: digital display



(3) Capacity (selection): high voltage: 0 ~ 100 kg/ square precision 0.1 kg/cm2);



(4) Low pressure: 0 ~ 16 KG squared (accuracy 0.1 kg/cm2)



(5) Oil pressure speed: (170 ± 10) ml/min



(6) Caliper caliber: upper ring: high pressure type 31.5mm, low pressure type 30.48mm;



(7) Lower ring: high pressure 31.5 mm, low pressure 31.75 mm



(8) Oil pressure gauge: 0 ~ 25 kg/ square.



(9) Motors: AC 220V, 1/4HP
