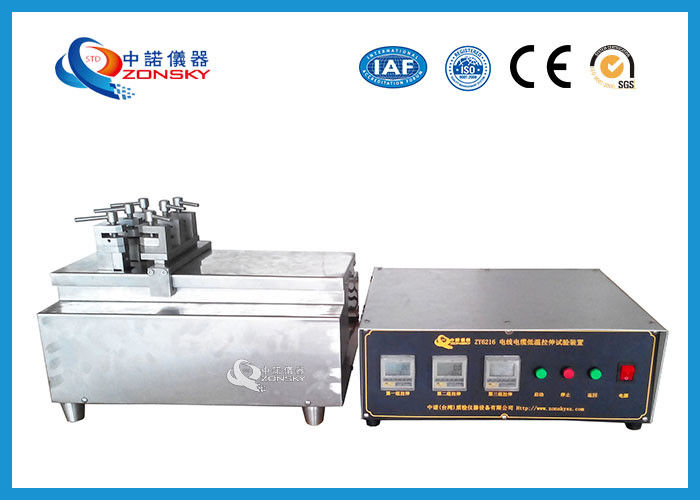

IEC60811 Wire Cable Low Temperature Tensile Testing Apparatus

IEC60811 Wire Cable Low Temperature Tensile Test Apparatus

1. Overview

It is used for tensile testing of polymer materials, wire and cable, rubber, plastic and other insulating sheaths in low temperature environment. Its design and manufacture conform to the standards GB/T2951.14-2008, Articles 8.3 and 8.4, VDE 0472Part616, IEC 60811-1-4 and other test standards require that the device is widely used in wire and cable testing centers, wire and cable manufacturers, and polymer materials research and development institutions.

2. Basic parameters

(1) The maximum stretch length: 280mm

(2) Stretching speed: 20mm / min ~ 30mm / min

(3) Chuck type: non-self-tightening

(4) Sample specifications: I, II dumbbells, thickness of 0.6mm ~ 32.0mm;

(5) Displacement measurement: digital display, elongation accuracy of ±0.1mm, resolution of 0.1%

(6) Temperature range: RT ~ -25℃

(7) In combination with the low temperature box, the low temperature drawing device is placed in the low temperature box for testing, and the control box is placed outside for operation.

(8) Control box dimensions: L425mm*W370mm*H165mm

Test device: L430mm*W284mm*H325mm

(9) Working power: AC220V, 50HZ

3. Matters needing attention

(1) The equipment installation place must be equipped with AC220V power supply for its use.

(2) This equipment must be placed in an indoor environment free from direct sunlight and dryness.

(3) It is forbidden to place corrosive, flammable and explosive materials on the equipment to avoid damage to the equipment.

(4) This equipment must be grounded reliably during the test to avoid electric shock.

(5) Spray lubricant on the transmission components of the device regularly to prevent the component from rusting the test.

(6) After the test is finished, clean the test device in time to keep the equipment clean and dry.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.

Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
