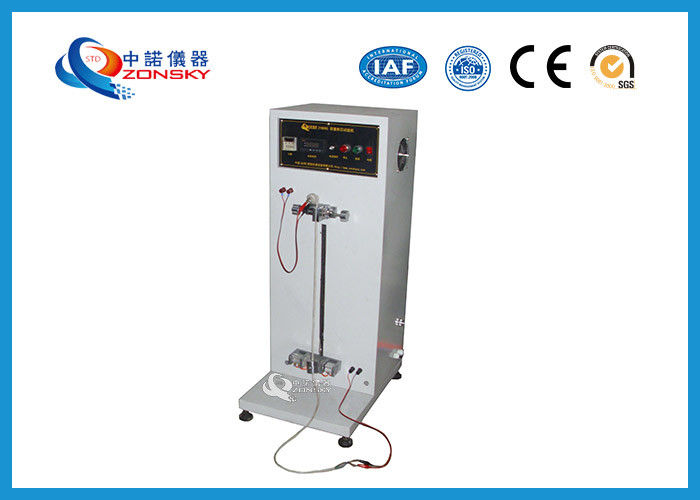

Wire and Cable Break Load Tester / Breaking Load Testing Machine

Wire and Cable Break Load Tester / Breaking Load Testing Machine

1. Overview

The appropriate length of the soft wire sample, one end of which is mounted on a rigid support, and a weight of 0. 5k g is suspended from the sample at a distance of 0.5 m below the support point. The conductor passes a current of approximately 0.1 A. During the test, the weight is lifted freely to the support point and repeated five times. The design and manufacture of this equipment meet the requirements of GB/T5023.1 and GB/T5023.2 test standards.

2. Main Technical Parameters

(1) Heavy hammer: 0.5kg

(2) Test height: 0.5m

(3) Test current: 0.1A

(4) Test voltage: 12V

(5) Counter: 0-9999 times

(6) Dimensions: L450 * W600 * L1140mm

(7) Working power: AC220V, 50HZ

(8) Total power: 0.2KW

3. Matters Needing Attention

(1) The test equipment must be placed in a room that is dry and free of direct sunlight.

(2) The equipment installation office must be equipped with an air source and a single-phase 220V AC power supply for use.

(3) When the device is connected to the power supply, it must be grounded reliably to prevent electric shock.

(4) During the free fall of the weight, the sample may wrap around the weight clamp. In this case, immediately press the “Stop” button or turn off the power to avoid burning the motor.

(5) During the test, a green rubber pad or other cushion should be placed under the weight to prevent the weight from falling and damaging the base of the device.

(6) When using a heavy hammer to lock the sample, it is necessary to use appropriate force. It should not be too tight or too loose, so as not to affect the test results.

(7) After each test, clean the test equipment in time to keep the equipment clean and dry.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.

Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
