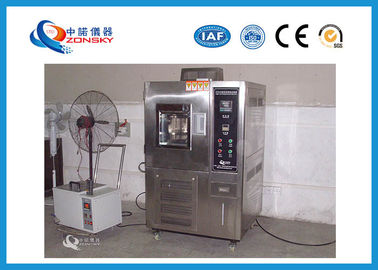

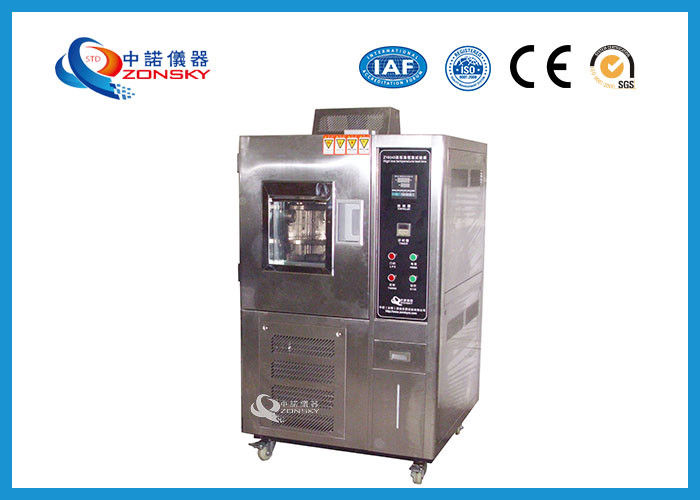

19 KW Thermal Shock Test Chamber / High Low Temperature Testing Equipment

Thermal Shock Test Chamber / High Low Temperature Testing Equipment

1. Overview

This test machine is used in electronics, auto parts, plastics and other industries to test the repeated impact test of various materials on high and low temperature, and to test the chemical changes or physical damage generated by the product in the environment of thermal expansion and contraction. The equipment is divided into three parts: high temperature zone, low temperature zone and test zone. It adopts unique heat-dissipation structure and cold storage effect. The test object is completely static during the test, and the hot and cold airway switching mode is used to introduce the test sample to do the thermal shock test. . It can independently set the functions of three different conditions of high temperature, low temperature and thermal shock, and has the function of high and low temperature testing machine when performing cold and hot shock conditions.

2. Main Technical Parameters

Three boxes of air-cooled thermal shock test chambers, at no load

(1) Test tank temperature range: -70℃ ~ + 180℃

(2) High temperature bath temperature setting range: +60℃ ~ +190℃

High temperature bath heating time: RT (room temperature) ~ +190℃ for about 30min (room temperature is 10~30℃)

(3) Low temperature tank temperature setting range: -83℃ ~ -10℃

(4) Low temperature bath cooling time: RT (room temperature) ~-83℃ about 75min (room temperature is 10~30℃)

(5) Temperature fluctuation: ±1.0℃

(6) Temperature deviation: ≤ ±2.0℃

(7) Temperature recovery time: ≤ 5 minutes (plastic IC load 2.5kg)

(8) High and low temperature exposure time: 30min or more

(9) Impact mode: It adopts a full set of pneumatics, high reliability and stable operation of equipment.

(10) Internal dimensions: 300 * 500 * 550 (W * H * D) mm

(11) External dimensions: 1200 * 1700 * 1600 (W * H * D) mm

(12) Total power: 19KW rated current 10KW

(13) Working power: 3∮380V

3. Use Of Programmable Controller

The following considerations may be involved in the process of using this instrument controller:

(1) This controller can work normally in general. If you are worried that the fault or abnormality of the controller will cause a major accident or damage other equipment, you should set up an emergency stop circuit and protection circuit to avoid accidents to prevent accidents.

(2) To avoid malfunction of this controller, please provide power supply within the rated voltage range.

(3) To prevent electric shock or malfunction and malfunction, do not turn on the power before installation and wiring are completed.

(4) This controller is a non-explosion-proof product. Please do not use it in an environment with flammable or explosive gas.

(5) Never disassemble, process, modify or repair the controller. Otherwise, there is a danger of abnormal operation, electric shock or fire.

(6) After turning on the power, please do not touch the power terminal, otherwise there is danger of electric shock or malfunction.

(7) After the power is turned off, the cable can be removed. Otherwise, there is danger of electric shock or malfunction.

(8) The vents of the controller should be kept open to avoid malfunctions, abnormal movements, reduced life, and even fire.

(9) Do not use the controller if it is found to be damaged or deformed when the package is opened.

(10) When installing the controller, be careful not to let dust, wire ends, iron filings or other things enter, otherwise it will malfunction or malfunction.

(11) Wiring must be correct and must be grounded. Failure to ground may result in electric shock, malfunction, abnormal display or large errors in measurement.

(12) Periodically check the terminal screws and the holder, please do not use them in a loose condition.

(13) During the operation of the controller, the power input terminal must pay attention to the installation position to prevent electric shock.

(14) During operation, if you need to modify the settings, signal output, start, stop, etc., you should fully consider the safety. The wrong operation will damage or malfunction the working equipment.

(15) Wipe the controller with a dry cloth. Do not use alcohol, benzine or other organic solvents. Do not splash water on the controller.

(16) The internal parts of the controller have a certain life span. For the safe and continuous use of this controller, it is desirable to perform maintenance and maintenance on a regular basis.

When disposing of this controller, please dispose of it with industrial waste.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.

Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
