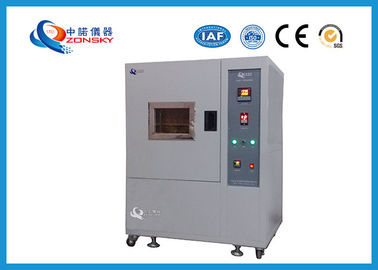

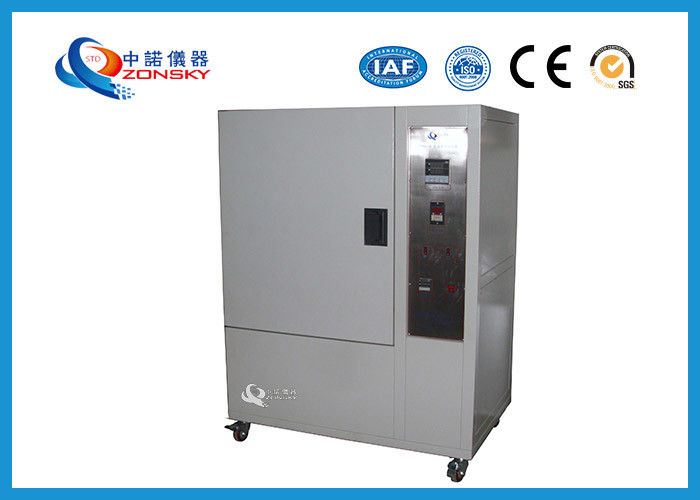

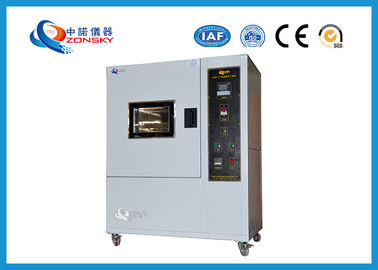

50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment

China 50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment supplier
50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment supplier 50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment supplier 50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment supplier

Large Image :  50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6011B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set / Month
Detailed Product Description
Material: Paint Finish Studio Size: 550 X 550 X 450 (mm)
Dimension: L X W X H, 910 X 620 X 1185 (mm) Temperature Range: Normal Temperature ~ 300℃
Temperature Fluctuation: ± 0.5℃ Power: AC220V, 50HZ
High Light:

flammability test chamber

,

flammability testing labs

Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment



1. Overview



ZY6011B aging test machine, this machine is suitable for leather, plastic, rubber, cloth, change characteristics before and after heating. Auxiliary epoxy powder spray coating, light weight, small size, beautiful appearance and wide application.



2. Parameters



(1) Power: AC220V, 50HZ

(2) Studio size: 550 x 550 x 450 (mm)

(3) Dimensions: L x W x H, 910 x 620 x 1185 (mm)

(4) Temperature range: normal temperature ~ 300℃ (with overload protection)

(5) Time: Any setting from 0 to 999 hours.

(6) Thermostat: with PID settings

(7) Temperature fluctuation: ±0.5℃

(8) Temperature uniformity: ±3.5℃



50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment



3. Principle



After the machine is uniformly heated at the specified temperature and time, the yellowing, opening, shrinkage, elongation, residual rate and other properties of the sample before and after aging are observed to determine the aging characteristics. The design of this instrument meets the requirements of GB2099, GB5013, GB5023 and GB4706 standards.



50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment

50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment

50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment

50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment

50HZ Rubber Aging Testing Chamber / Multi Functional Aging Test Equipment





FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
